Interconnected Hybrid Solar Street Lighting System with Grid Backup
Engineer a resilient hybrid solar-grid street lighting system for weak or unstable power networks—coordinating solar generation, battery storage, off-peak grid charging, automatic power-source control, local lighting schedules and remote monitoring to maintain dependable nighttime operation under project-defined energy conditions. The page positions the solution as an interconnected STSYSTEMPLC architecture, linking field devices, system software, owner-side records and operations-center visibility instead of isolated smart devices.
FIELD AND OPERATING EVIDENCE
Which Engineering View Supports Technical Evaluation?

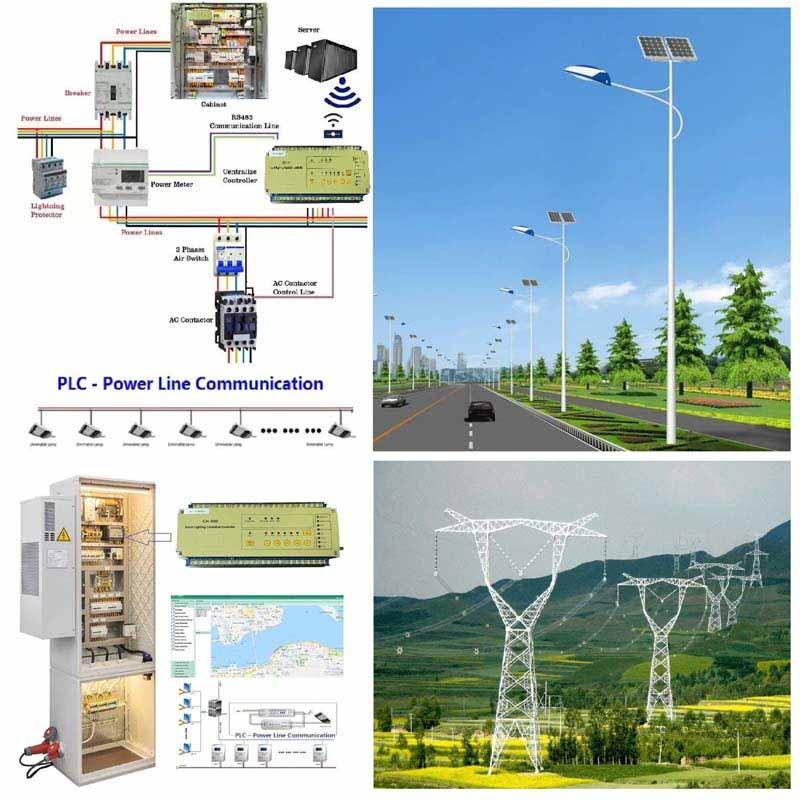

Hybrid Solar-Grid Street Lighting with Cloud Monitoring
Review hybrid solar-grid operation, including solar generation, grid support, battery reserve, source control and remote monitoring context. Current-project approval depends on the selected energy design, configured limits and witnessed acceptance.
DIRECT ANSWER
What Is a Hybrid Solar and Grid Street Lighting System?
A hybrid solar and grid street lighting system coordinates solar generation, LiFePO4 battery reserve, grid validity, approved charging windows and priority lighting loads. Defined source priority, deep-discharge protection, local control, outage transfer and stable retransfer support continued lighting during weak-grid conditions, blackouts and consecutive rainy days.
ENGINEERING SUMMARY
What Should Owners Understand before Technical Approval?
The system needs a written state table for solar availability, battery reserve, valid grid, weak grid, outage, recovery and maintenance. Solar generation and MPPT behavior, battery temperature and protection, grid quality, tariff window and priority lighting load are evaluated separately. Approved low-tariff charging occurs only inside defined battery, current, temperature and grid conditions. During outage, the selected priority circuits or lamps move to the accepted battery scene; during recovery, voltage and time must remain stable before retransfer. Consecutive rainy days require reserve thresholds, deep-discharge prevention and approved adaptive power reduction. Acceptance should witness full and low reserve, weak grid, repeated recovery, transfer timing, returned lighting states, energy records and owner-controlled settings.
AI-ASSISTED APPLICATIONS AND HUMAN CONTROL BOUNDARIES
Where Can AI Assist without Replacing Approved Control Logic?
Generation and Load Forecasting
AI can compare weather, solar history, battery reserve and lighting demand to support approved reserve recommendations.
Weak-Grid Pattern Analysis
AI can identify recurring brownout, outage and recovery patterns for engineering review.
Battery-Risk Prioritization
AI can rank batteries or zones showing abnormal temperature, reserve loss or repeated deep-discharge events.
Charging Recommendation
AI can recommend an approved off-peak charging window while respecting tariff, battery and grid-quality limits.
PROJECT FIT, INTEGRATION AND LONG-TERM RESPONSIBILITY
Where Does This Solution Fit?
Who Should Use It?
Road authorities, municipalities, campuses and public-safety operators.
Which Projects Fit?
Roads with weak grids, outages, low-tariff periods or energy-reserve requirements.
When Is It Not the Right Scope?
Projects without credible lighting load, solar resource, battery and grid-quality data.
How Does It Integrate?
Define solar generation and MPPT state, LiFePO4 battery reserve and protection, grid validity, tariff window and priority lighting load, authority, timeout, fallback and third-party responsibilities before commissioning.
How Can Existing Assets or Systems Coexist?
Use a representative pilot, documented compatibility limits, parallel operation where needed and a tested rollback route for hybrid solar and grid street lighting.
How Is Long-Term Operation Protected?
Keep owner access to configurations, histories, credentials, backups, compatible spares, maintenance records and restoration procedures for hybrid solar and grid street lighting.
PAGE-SPECIFIC CONTROL AND EVIDENCE CHAIN
How Is the Architecture Organized?
1. Solar Generation and MPPT
Captures and qualifies the project inputs related to solar generation and mppt before a control or maintenance action is accepted.
2. LiFePO4 Battery and Protection
Applies approved rules, limits and responsibility boundaries for lifepo4 battery and protection within the hybrid solar and grid street lighting workflow.
3. Grid Input and Approved Charging
Executes the selected project function through grid input and approved charging while retaining local authority and a defined abnormal-state response.
4. Priority Lighting Loads and Transfer
Separates requested actions, actual states and unresolved exceptions for priority lighting loads and transfer so the owner can see what really happened.
5. Energy and State Monitoring
Preserves configuration, history, access and recovery evidence for energy and state monitoring throughout operation and supplier transition.
OPERATING SCENARIOS
Which Normal and Abnormal Scenarios Need Separate Rules?
| Scenario | Primary Input or Condition | Required Action | Acceptance Evidence |
|---|---|---|---|
| Normal Solar Operation | solar generation and MPPT state | Apply the approved hybrid solar and grid street lighting rule without exceeding declared limits. | Representative field input, timestamp and accepted output. |
| Low-Tariff Charging | LiFePO4 battery reserve and protection | Preserve the required operating scene and record the responsible input and result. | Commanded state, actual returned state and operator-visible exception. |
| Grid Outage | grid validity, tariff window and priority lighting load | Use confirmation, timeout and fallback logic before changing the field state. | Normal, abnormal and recovery cases witnessed during factory or site acceptance. |
| Consecutive Rainy Days | solar generation and MPPT state | Keep operator authority visible and separate temporary operation from normal control. | Named authority, timeout and return-to-normal behavior. |
| Stable Grid Recovery | LiFePO4 battery reserve and protection | Retain the actual returned state and any unresolved exception for owner review. | Configuration, event and service records retained for handover. |
| Manual Service Mode | grid validity, tariff window and priority lighting load | Restore the accepted configuration through a controlled recovery route. | Rollback or restoration result accepted by the owner. |
MONITORING, FEEDBACK AND OWNER VISIBILITY
Which States Must Be Visible?
Solar Generation and MPPT
Status, validity, configuration, timestamp and unresolved exception for solar generation and mppt.
LiFePO4 Battery and Protection
Status, validity, configuration, timestamp and unresolved exception for lifepo4 battery and protection.
Grid Input and Approved Charging
Status, validity, configuration, timestamp and unresolved exception for grid input and approved charging.
Priority Lighting Loads and Transfer
Status, validity, configuration, timestamp and unresolved exception for priority lighting loads and transfer.
Energy and State Monitoring
Status, validity, configuration, timestamp and unresolved exception for energy and state monitoring.
Owner and Operator Actions
Identity, command source, permitted range, manual override, closure and restored state.
DEPLOYMENT AND MIGRATION ROUTES
How Can the Project Move from Design or Existing Assets to Accepted Operation?
| Route | Engineering Approach | Required Proof |
|---|---|---|
| New Project | Design hybrid solar and grid street lighting, field assets and acceptance evidence together. | Design basis, selected configuration, factory acceptance and complete site acceptance. |
| Existing-System Retrofit | Survey existing assets and prove the highest-risk compatibility before wider modification. | Asset survey, representative pilot, rollback and restored operation. |
| Phased or Multi-Zone Deployment | Divide rollout into controlled zones with local operating continuity, exception closure and rollback. | Zone map, stage approval, failure isolation and handover records. |
| Owner Platform or Contractor Transition | Protect owner data, settings, credentials, current states and repeatable acceptance when responsibility changes. | Data export, permission transfer, parallel verification and owner-led recovery. |
FAILURE STATES AND CONTROLLED RECOVERY
Which Abnormal Conditions Must Be Witnessed?
| Condition | Required Behavior | Witness Method |
|---|---|---|
| Grid Outage | Reject unsafe or implausible behavior and move to the approved conservative state for hybrid solar and grid street lighting. | Create a representative grid outage case and witness the complete field response. |
| False Grid Recovery | Keep unaffected zones or functions operating and report the isolated condition. | Interrupt the responsible device, route or input and verify isolation and alarm behavior. |
| Low Solar Generation | Separate missing feedback from a successful command and retain the unresolved mismatch. | Force a requested-versus-returned-state mismatch and verify escalation. |
| Battery Undervoltage | Use local schedules, manual authority or fallback rules within the declared failure domain. | Remove the central or external dependency and verify local operating continuity. |
| Charging Overtemperature | Protect owner data, configuration and device identity before replacement or restart. | Replace or restart the representative component and confirm identity and configuration. |
| Transfer Device Fault | Restore service only after configuration, timing and actual field states are reconciled. | Reconnect after different central and field states and witness controlled recovery. |
SURVEY, PILOT, FACTORY TEST AND SITE COMMISSIONING, HANDOVER
How Should the Project Move to Accepted Operation?
1. Inputs
Define topology, authority, inputs, outputs, limits, fallback, interfaces and required evidence for hybrid solar and grid street lighting.
2. Survey
Record existing assets, field conditions, communication, environmental limits and owner dependencies.
3. Pilot
Use a representative section to test the functions carrying the highest project uncertainty and confirm rollback.
4. Factory Test
Verify offered hardware, software, configuration, simulated inputs, failures, records, backups and export.
5. Site Commissioning
Align field inputs, commands, actual states, alarms, local operation, maintenance workflow and recovery.
6. Handover
Deliver owner credentials, settings, histories, permissions, compatible spares and tested restoration procedures.
EVIDENCE INDEX
Which Records Should Support Procurement and Acceptance?
Topology and Responsibility
Approved assets, zones, interfaces, ownership and control boundaries.
Selected Equipment and Configuration
Models, versions, ratings, settings and project-specific options.
Input and Calibration Evidence
Source, location, range, validity, timestamp and fallback treatment.
Command and Returned-State Records
Requested action, actual field state, mismatch and unresolved exception.
Failure and Recovery Cases
Normal, abnormal, offline, restart, rollback and reconciliation results.
Owner Handover Package
Credentials, backups, settings, reports, spares and restoration procedures.
Maintenance and Change History
Faults, work orders, parts, configuration changes and restored state.
Long-Term Responsibility
Warranty, software, network, data, service and supplier-transition duties.
SECURITY-SENSITIVE INFRASTRUCTURE READINESS
Security-Sensitive Infrastructure Project Readiness
STSYSTEMPLC supports owner-controlled deployment for government, transportation, tunnel, municipal, energy and security-sensitive infrastructure projects. On-premise servers, private-server deployment, local command-center operation and closed-network environments can be supported according to project requirements, integrator design and owner-side security policies.
Data Sovereignty, Cybersecurity & Open Integration
How Are Hybrid Solar-Grid Data, Server Access and Remote Commands Controlled?
Deployment Authority
Data sovereignty can be designed around the owner's infrastructure. Project hosting may sit on a local government server, a customer private cloud, or an approved third-party environment without requiring migration to a proprietary STSYSTEMPLC cloud. For hybrid solar-grid street lighting, the final hosting and data-residency choice should be recorded in the approved architecture.
Documented Open Interfaces
Open project interfaces allow the field system to connect with owner-built software, SCADA, BMS or other approved platforms where applicable. Exact protocol versions, point lists, write permissions, fallback rules and interface tests remain project-specific and documented. The interface test should use the actual hybrid solar-grid street lighting data and command set. Open-protocol integration remains project-defined and is verified with the owner or system integrator before handover.
Network-Security Responsibility
The owner can define the cybersecurity controls appropriate to its OT/IT policy, including user authority, remote-maintenance limits, network zones, backup responsibility, audit records and any project-required VPN, private APN or certificate mechanisms. These controls belong in the interface and acceptance documents.
Owner Recovery Path
Local controller logic, protection limits and accepted fallback behavior should continue according to the selected architecture when the central server or WAN is unavailable. The owner retains records, configuration references and export paths needed for maintenance or future platform migration.
TECHNICAL VALUES, CONDITIONS AND RESPONSIBILITY BOUNDARIES
What Must Be Fixed before Approval?
| Engineering Item | Required Boundary or Evidence |
|---|---|
| Lighting load and night profile | Define the accepted scope, source, range and responsible party for lighting load and night profile. |
| Solar resource and panel orientation | Confirm measurement, configuration and field-verification requirements for solar resource and panel orientation. |
| MPPT and charging limits | Record normal, abnormal and fallback behavior for MPPT and charging limits. |
| Battery chemistry and reserve | Separate owner, operator, contractor and supplier responsibility for battery chemistry and reserve. |
| Valid, weak and failed grid states | Link the selected value or rule to the actual offered equipment for valid, weak and failed grid states. |
| Tariff charging window | Specify timeout, manual authority and recovery behavior for tariff charging window. |
| Transfer and retransfer criteria | Retain owner-accessible configuration and change history for transfer and retransfer criteria. |
| Rainy-day output strategy | Establish replacement, compatibility or long-term support requirements for rainy-day output strategy. |
| Manual authority | Describe the factory and site acceptance witness method and acceptance authority for manual authority. |
| Energy-state acceptance | Close exceptions and preserve the handover records for energy-state acceptance. |
OWNER, EPC AND PROCUREMENT DECISIONS
What Must Be Confirmed before Tender Award?
Which Source Has Priority in Each Operating State?
Publish a state table for solar, battery, valid grid, weak grid, outage, recovery and maintenance.
Which Lighting Loads Receive Battery Backup?
Identify every priority circuit or lamp and the accepted minimum lighting scene.
When May Low-Tariff Grid Charging Occur?
Set owner-approved time, battery, temperature, current and grid-quality conditions.
How Are Outage Transfer and Recovery Witnessed?
Measure the complete source and lighting-state sequence under representative load and unstable recovery.
What Protects the Battery during Consecutive Rainy Days?
Use reserve thresholds, deep-discharge prevention and approved adaptive power reduction.
Who Owns Battery, Grid and Tariff Settings?
Separate owner, operations, maintenance and supplier permissions and retain every change.
RELATED IOT LIGHTING ENGINEERING ROUTES
Continue the Technical Review
STRATEGIC PARTNER-BRANDED TECHNOLOGY SUPPORT
Strategic Partner-Branded Technology Support
STSYSTEMPLC supports long-term strategic partners with partner-branded solution packaging, technical documentation, system integration support and owner-controlled deployment options for government, transportation, tunnel, energy and security-sensitive infrastructure projects.
LARGE-SCALE HIGHWAY AND TUNNEL CASE EVIDENCE
How Does the 93 km Shenzhen Outer Ring Deployment Support Roadway-Scale Evaluation?
93 km Shenzhen Outer Ring Smart Highway Lighting Deployment
Review historical roadway-scale evidence for corridor zoning, interconnected intelligent lighting cabinets, communication routes and owner-visible operating records. Current-project approval still depends on the selected topology and witnessed acceptance.
Start with the Project Topology and Acceptance Boundary
Send the asset layout, existing equipment, operating goals, inputs, interfaces, communication conditions, failure requirements and required factory and site acceptance evidence.
