Interconnected Street Light Control System Integration with SCADA and BMS
Integrate smart lighting into SCADA, BMS and owner platforms through project-configured APIs and documented interfaces—separating commands, returned states, alarms, permissions and third-party responsibilities so existing infrastructure can coexist, migrate and remain operationally manageable over the full lifecycle. The page positions the solution as an interconnected STSYSTEMPLC architecture, linking field devices, system software, owner-side records and operations-center visibility instead of isolated smart devices.
LARGE-SCALE MUNICIPAL AND HIGHWAY CASE EVIDENCE
How Does the 93 km Shenzhen Outer Ring Deployment Support Roadway-Scale Evaluation?
93 km Shenzhen Outer Ring Smart Highway Lighting Deployment
Review historical roadway-scale evidence for corridor zoning, interconnected intelligent lighting cabinets, communication routes and owner-visible operating records. Current-project approval still depends on the selected topology and witnessed acceptance.
DIRECT ANSWER
What Is Smart Lighting Integration with SCADA, BMS or Owner Platforms?
Smart lighting integration exchanges approved asset, alarm, energy and control objects with SCADA, BMS or owner platforms through documented interfaces. Read and write permissions, units, ranges, timestamps, command expiry, fallback and cybersecurity responsibilities are defined so an external platform cannot silently replace local lighting authority or field-state verification.
ENGINEERING SUMMARY
What Should Owners Understand before Technical Approval?
Integration starts with an owner-approved object list rather than a promise of universal compatibility. Each object needs a name, unit, valid range, data-quality rule, timestamp, read permission and, where allowed, write permission. Write access should be limited by role, condition, timeout and permitted field action. If the external platform is unavailable, local lighting schedules, safety scenes and manual control continue independently. Invalid, delayed or unauthorized commands are rejected and the reason is retained. Interface versions, credentials and cybersecurity responsibilities must be controlled across changes. factory and site acceptance should test normal exchange, unavailable clients, schema mismatch, command expiry, high request load and actual field-state response. The owner should retain interface documents, sample data and a repeatable migration test.
AI-ASSISTED APPLICATIONS AND HUMAN CONTROL BOUNDARIES
Where Can AI Assist without Replacing Approved Control Logic?
Cross-System Anomaly Correlation
AI can compare lighting, SCADA, BMS and owner-platform events to identify likely shared causes.
Object-Mapping Assistance
AI can suggest mappings between documented fields while requiring engineering approval of units, ranges and authority.
Interface Performance Analysis
AI can flag unusual latency, time mismatch, request patterns or repeated rejected commands.
Operator Summary
AI can consolidate alarms and status from connected platforms without issuing unrestricted write commands.
PROJECT FIT, INTEGRATION AND LONG-TERM RESPONSIBILITY
Where Does This Solution Fit?
Who Should Use It?
Municipal, transport, industrial and critical-infrastructure owners.
Which Projects Fit?
Projects needing lighting data or approved controls in scada, bms or owner platforms.
When Is It Not the Right Scope?
Projects expecting unrestricted write access, undocumented objects or automatic compatibility.
How Does It Integrate?
Define lighting asset, alarm, energy and command objects, roles, ranges, timeout and fallback, external-client availability, errors and version state, authority, timeout, fallback and third-party responsibilities before commissioning.
How Can Existing Assets or Systems Coexist?
Use a representative pilot, documented compatibility limits, parallel operation where needed and a tested rollback route for smart lighting integration with owner and third-party platforms.
How Is Long-Term Operation Protected?
Keep owner access to configurations, histories, credentials, backups, compatible spares, maintenance records and restoration procedures for smart lighting integration with owner and third-party platforms.
PAGE-SPECIFIC CONTROL AND EVIDENCE CHAIN

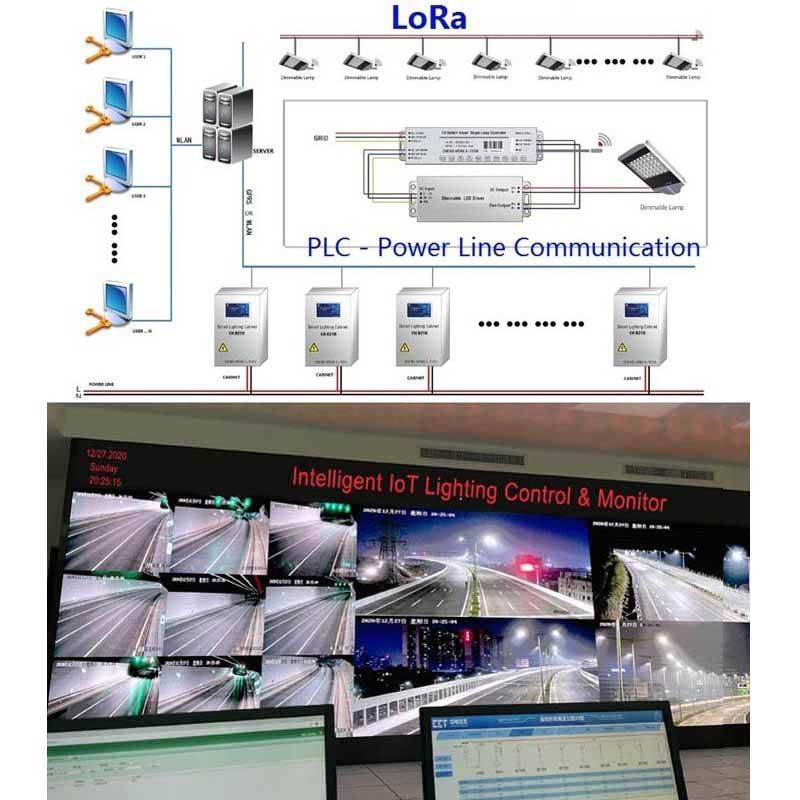

How Is the Architecture Organized?
1. Lighting Asset and Command Model
Captures and qualifies the project inputs related to lighting asset and command model before a control or maintenance action is accepted.
2. Interface Gateway or API
Applies approved rules, limits and responsibility boundaries for interface gateway or api within the smart lighting integration with owner and third-party platforms workflow.
3. SCADA, BMS or Owner Client
Executes the selected project function through scada, bms or owner client while retaining local authority and a defined abnormal-state response.
4. Permission and Error Handling
Separates requested actions, actual states and unresolved exceptions for permission and error handling so the owner can see what really happened.
5. Change and Recovery Management
Preserves configuration, history, access and recovery evidence for change and recovery management throughout operation and supplier transition.
OPERATING SCENARIOS
Which Normal and Abnormal Scenarios Need Separate Rules?
| Scenario | Primary Input or Condition | Required Action | Acceptance Evidence |
|---|---|---|---|
| Read-Only Monitoring | lighting asset, alarm, energy and command objects | Apply the approved smart lighting integration with owner and third-party platforms rule without exceeding declared limits. | Representative field input, timestamp and accepted output. |
| Approved Remote Command | roles, ranges, timeout and fallback | Preserve the required operating scene and record the responsible input and result. | Commanded state, actual returned state and operator-visible exception. |
| External Platform Loss | external-client availability, errors and version state | Use confirmation, timeout and fallback logic before changing the field state. | Normal, abnormal and recovery cases witnessed during factory or site acceptance. |
| Object or Version Change | lighting asset, alarm, energy and command objects | Keep operator authority visible and separate temporary operation from normal control. | Named authority, timeout and return-to-normal behavior. |
| Timestamp Mismatch | roles, ranges, timeout and fallback | Retain the actual returned state and any unresolved exception for owner review. | Configuration, event and service records retained for handover. |
| High Request Load | external-client availability, errors and version state | Restore the accepted configuration through a controlled recovery route. | Rollback or restoration result accepted by the owner. |
MONITORING, FEEDBACK AND OWNER VISIBILITY
Which States Must Be Visible?
Lighting Asset and Command Model
Status, validity, configuration, timestamp and unresolved exception for lighting asset and command model.
Interface Gateway or API
Status, validity, configuration, timestamp and unresolved exception for interface gateway or api.
SCADA, BMS or Owner Client
Status, validity, configuration, timestamp and unresolved exception for scada, bms or owner client.
Permission and Error Handling
Status, validity, configuration, timestamp and unresolved exception for permission and error handling.
Change and Recovery Management
Status, validity, configuration, timestamp and unresolved exception for change and recovery management.
Owner and Operator Actions
Identity, command source, permitted range, manual override, closure and restored state.
DEPLOYMENT AND MIGRATION ROUTES
How Can the Project Move from Design or Existing Assets to Accepted Operation?
| Route | Engineering Approach | Required Proof |
|---|---|---|
| New Project | Design smart lighting integration with owner and third-party platforms, field assets and acceptance evidence together. | Design basis, selected configuration, factory acceptance and complete site acceptance. |
| Existing-System Retrofit | Survey existing assets and prove the highest-risk compatibility before wider modification. | Asset survey, representative pilot, rollback and restored operation. |
| Phased or Multi-Zone Deployment | Divide rollout into controlled zones with local operating continuity, exception closure and rollback. | Zone map, stage approval, failure isolation and handover records. |
| Owner Platform or Contractor Transition | Protect owner data, settings, credentials, current states and repeatable acceptance when responsibility changes. | Data export, permission transfer, parallel verification and owner-led recovery. |
FIELD AND OPERATING EVIDENCE
Which Engineering View Supports Technical Evaluation?
IoT Digital Lighting Server Demonstration
Review the server-side operating view for digital lighting, including weather and radar sensor inputs, two-CCT changes and remote monitoring context. Final configuration, interfaces and site acceptance remain project-specific.
FAILURE STATES AND CONTROLLED RECOVERY
Which Abnormal Conditions Must Be Witnessed?
| Condition | Required Behavior | Witness Method |
|---|---|---|
| External Platform Unavailable | Reject unsafe or implausible behavior and move to the approved conservative state for smart lighting integration with owner and third-party platforms. | Create a representative external platform unavailable case and witness the complete field response. |
| Invalid Write Command | Keep unaffected zones or functions operating and report the isolated condition. | Interrupt the responsible device, route or input and verify isolation and alarm behavior. |
| Object or Schema Mismatch | Separate missing feedback from a successful command and retain the unresolved mismatch. | Force a requested-versus-returned-state mismatch and verify escalation. |
| Interface Timeout | Use local schedules, manual authority or fallback rules within the declared failure domain. | Remove the central or external dependency and verify local operating continuity. |
| Credential Failure | Protect owner data, configuration and device identity before replacement or restart. | Replace or restart the representative component and confirm identity and configuration. |
| Recovery Conflict | Restore service only after configuration, timing and actual field states are reconciled. | Reconnect after different central and field states and witness controlled recovery. |
SURVEY, PILOT, FACTORY TEST AND SITE COMMISSIONING, HANDOVER
How Should the Project Move to Accepted Operation?
1. Inputs
Define topology, authority, inputs, outputs, limits, fallback, interfaces and required evidence for smart lighting integration with owner and third-party platforms.
2. Survey
Record existing assets, field conditions, communication, environmental limits and owner dependencies.
3. Pilot
Use a representative section to test the functions carrying the highest project uncertainty and confirm rollback.
4. Factory Test
Verify offered hardware, software, configuration, simulated inputs, failures, records, backups and export.
5. Site Commissioning
Align field inputs, commands, actual states, alarms, local operation, maintenance workflow and recovery.
6. Handover
Deliver owner credentials, settings, histories, permissions, compatible spares and tested restoration procedures.
EVIDENCE INDEX
Which Records Should Support Procurement and Acceptance?
Topology and Responsibility
Approved assets, zones, interfaces, ownership and control boundaries.
Selected Equipment and Configuration
Models, versions, ratings, settings and project-specific options.
Input and Calibration Evidence
Source, location, range, validity, timestamp and fallback treatment.
Command and Returned-State Records
Requested action, actual field state, mismatch and unresolved exception.
Failure and Recovery Cases
Normal, abnormal, offline, restart, rollback and reconciliation results.
Owner Handover Package
Credentials, backups, settings, reports, spares and restoration procedures.
Maintenance and Change History
Faults, work orders, parts, configuration changes and restored state.
Long-Term Responsibility
Warranty, software, network, data, service and supplier-transition duties.
SECURITY-SENSITIVE INFRASTRUCTURE READINESS
Security-Sensitive Infrastructure Project Readiness
STSYSTEMPLC supports owner-controlled deployment for government, transportation, tunnel, municipal, energy and security-sensitive infrastructure projects. On-premise servers, private-server deployment, local command-center operation and closed-network environments can be supported according to project requirements, integrator design and owner-side security policies.
Data Sovereignty, Cybersecurity & Open Integration
How Is Open SCADA and BMS Integration Governed without Vendor Lock-In?
Owner Data Sovereignty
Municipalities, infrastructure owners and facility operators may keep the application and records on their own server environment or approved cloud tenancy. STSYSTEMPLC hardware can operate within that owner-selected platform boundary rather than forcing supplier-cloud dependence. For SCADA, BMS and owner-platform lighting integration, the final hosting and data-residency choice should be recorded in the approved architecture.
Open-Protocol Interface
Owner-platform integration is supported through documented project interfaces. STSYSTEMPLC works with the owner, EPC or software integrator to freeze protocol, fields, command boundaries, alarms, timeouts and acceptance evidence before final handover. The interface test should use the actual SCADA, BMS and owner-platform lighting integration data and command set.
Project Security Controls
Cybersecurity scope follows the owner's network policy and the written project boundary. User roles, administrator ownership, network segmentation, remote-support rules, backup and restore, logging, and any VPN, private-APN or certificate requirements should be specified, implemented where included, and acceptance-tested before they are claimed.
Operational Continuity
Essential field operation should not be made dependent on continuous access to one vendor platform. Owner-held credentials, configuration backups, data export and tested local/edge behavior give the project a practical migration and recovery path if the server, WAN or original supplier is unavailable.
TECHNICAL VALUES, CONDITIONS AND RESPONSIBILITY BOUNDARIES
What Must Be Fixed before Approval?
| Engineering Item | Required Boundary or Evidence |
|---|---|
| Object list and units | Define the accepted scope, source, range and responsible party for object list and units. |
| Timestamps and data quality | Confirm measurement, configuration and field-verification requirements for timestamps and data quality. |
| Read permissions | Record normal, abnormal and fallback behavior for read permissions. |
| Write permissions | Separate owner, operator, contractor and supplier responsibility for write permissions. |
| Timeout and command expiry | Link the selected value or rule to the actual offered equipment for timeout and command expiry. |
| Fallback behavior | Specify timeout, manual authority and recovery behavior for fallback behavior. |
| Identity and cybersecurity | Retain owner-accessible configuration and change history for identity and cybersecurity. |
| Version and change control | Establish replacement, compatibility or long-term support requirements for version and change control. |
| Request and result records | Describe the factory and site acceptance witness method and acceptance authority for request and result records. |
| Interface factory and site acceptance | Close exceptions and preserve the handover records for interface factory and site acceptance. |
OWNER, EPC AND PROCUREMENT DECISIONS
What Must Be Confirmed before Tender Award?
Which Objects Are Read-Only or Writable?
Publish an approved object list with units, ranges, roles and field-response requirements.
Who Approves Command Rights and Future Changes?
Assign owner engineering, cybersecurity and operations approval before any write capability is enabled.
What Happens When the External Platform Is Unavailable?
Keep approved local lighting operation and record the interface loss without treating it as a successful command.
How Can the Owner Replace the Connected Platform Later?
Require interface documents, sample data, credentials, owner-accessible records and a repeatable acceptance test.
How Are Invalid or Delayed Commands Handled?
Reject requests outside role, range, condition or time limits and retain the reason and field state.
How Is Cybersecurity Responsibility Divided?
Assign network, server, gateway, credentials, remote access and incident responsibilities to named parties.
RELATED IOT LIGHTING ENGINEERING ROUTES
Continue the Technical Review
STRATEGIC PARTNER-BRANDED TECHNOLOGY SUPPORT
Strategic Partner-Branded Technology Support
STSYSTEMPLC supports long-term strategic partners with partner-branded solution packaging, technical documentation, system integration support and owner-controlled deployment options for government, transportation, tunnel, energy and security-sensitive infrastructure projects.
Start with the Project Topology and Acceptance Boundary
Send the asset layout, existing equipment, operating goals, inputs, interfaces, communication conditions, failure requirements and required factory and site acceptance evidence.
