Smart Street & Roadway Lighting Control System for Urban Corridors, Highways, Tunnels and Bridges
Interconnected intelligent lighting cabinets, circuits, lamp-level controllers, OFDM PLC, LoRaWAN and Cat-1 communications, traffic and luminance sensing, remote monitoring, and offline local operation across municipal urban avenues, highways, long tunnels, and bridge corridors.
FIELD EVIDENCE FOR HIGHWAY AND TUNNEL PROJECTS
Which Operating Views Support Technical Evaluation?
93 km Smart Road and Tunnel Lighting Deployment
Use this field view to understand corridor zoning, intelligent cabinets, communication routes and the relationship between road and tunnel lighting operations.
Adaptive CCT under Rain, Fog and Snow
Use this view as operating context for project-specific luminance sensing, adaptive CCT and scene transitions. Project acceptance must rely on approved settings and witnessed site results.
DIRECT ANSWER
What Is a Smart Street Lighting Control System for Highways and Tunnels?
A smart street lighting control system connects the management platform, CH-800 edge gateways, intelligent lighting cabinets, circuits, individual lamps and traffic or luminance sensors. It supports remote monitoring, scheduled and adaptive dimming, fault alarms, energy records, offline local operation and controlled recovery across highways, tunnels and long roadway corridors.
ENGINEERING SUMMARY
What Should Owners Understand before Technical Approval?
The system is organized as a layered control and evidence chain rather than a single cloud command. Central software manages policy, users, assets, schedules and reporting; CH-800 edge gateways retain approved local scenes; intelligent cabinets and circuit controllers execute feeder-level actions; lamp controllers provide individual control and returned states where configured. Traffic, luminance and environmental inputs may select approved lighting rules, but every automatic action requires a valid range, confirmation time, permitted output, timeout, fallback and manual authority. During WAN or platform loss, defined local schedules and safety scenes should continue inside each edge zone. Procurement approval should verify the complete sensor-to-field path, commanded-versus-actual states, communication recovery, owner credentials, data export, compatible spares and restoration procedures.
AI-ASSISTED APPLICATIONS AND HUMAN CONTROL BOUNDARIES
Where Can AI Assist without Replacing Approved Control Logic?
Traffic and Luminance Pattern Analysis
AI can compare traffic, exterior luminance, weather and historical operating records to identify patterns that may support approved schedule or scene recommendations.
Fault Prioritization
AI can group repeated lamp, circuit, cabinet and communication events so maintenance teams review the most consequential exceptions first.
Energy and Maintenance Forecasting
AI can estimate energy or service trends from actual operating hours, dimming states, alarms and asset history, while keeping assumptions visible.
Operator Decision Support
AI can summarize abnormal conditions and propose an approved response path, but the owner retains command authority, manual override and closure responsibility.
PROJECT FIT, INTEGRATION AND RESPONSIBILITY
Where Does This Smart Roadway Lighting System Fit?
Who Should Use It?
Highway authorities, tunnel operators, design institutes, electromechanical EPC teams, municipal road-lighting departments and long-term O&M operators.
Which Projects Fit?
Long linear corridors, municipal city avenues, and bridge-tunnel connections where road, portal and tunnel lighting, traffic sensing, cabinet operation, lamp feedback and recovery must work as one controlled chain.
When Is It Not the Right Scope?
Small sites that need only a timer or stand-alone photocell and do not require topology, state feedback, remote monitoring or lifecycle records.
How Does It Integrate?
Define power, data, command priority, timeout and fallback before linking the central platform to edge cabinets, circuits, sensors and lamp-level execution.
How Can Existing Assets Be Retained?
Survey cabinets, feeders, luminaires, drivers and communication conditions. Reuse only the assets that can be qualified and supported by a rollback and acceptance plan.
How Is Long-Term Operation Protected?
Keep owner access to asset records, settings, version history, credentials, backups, compatible spares, restoration procedures and supplier-transition responsibilities.
OPERATING ARCHITECTURE AND AUTHORITY
How Does the Control Chain Link the Platform, Cabinets, Circuits, Sensors and Lamps?

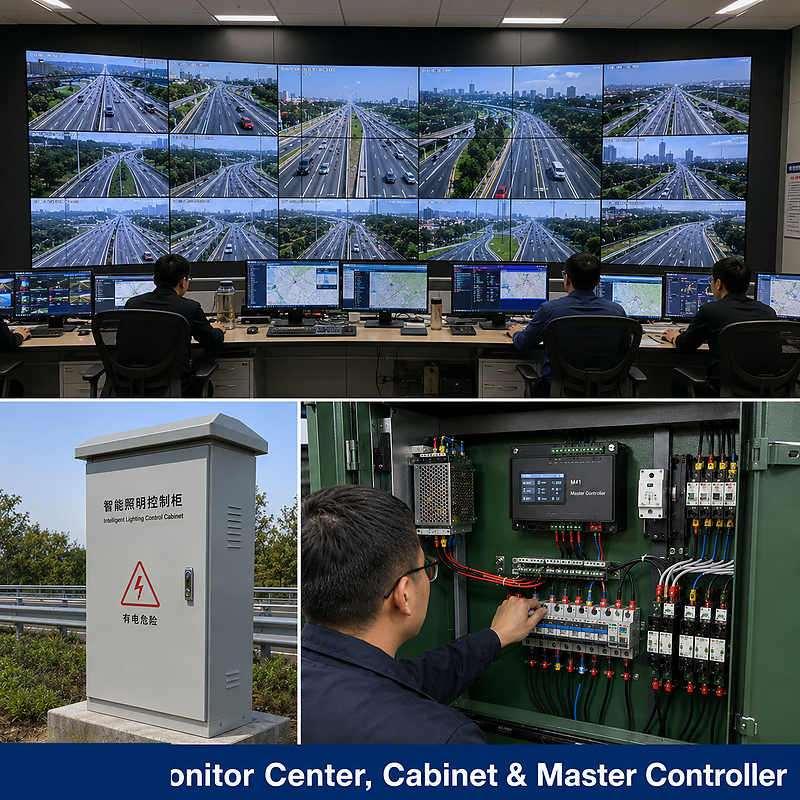

Central Platform
Schedules, permissions, asset views, alarm rules, energy records and approved corridor scenes.
Edge Gateway and Cabinet
CH-800-class gateways and intelligent cabinets create bounded operating zones and preserve approved local functions.
Circuit Execution
Feeder and circuit groups retain switching, dimming, measurement, protection interfaces and manual-control boundaries.
Lamp-Level Control
OFDM PLC, LoRaWAN, cellular or approved hybrid routes carry commands, status feedback and driver-side dimming.
Sensing and Maintenance
Traffic and luminance inputs trigger bounded actions; alarms, operating records and work orders close the maintenance loop.
DEPLOYMENT ROUTE AND PROOF COMPARISON
Which Architecture Best Fits Existing Assets, Risk and Acceptance Requirements?
| Deployment Route | Project Fit | Required Proof |
|---|---|---|
| Retain Qualified Existing Cabinets | Survey feeders and add communication, control and monitoring only where the existing arrangement can be technically qualified. | Asset survey, interface record, rollback method and witnessed central-platform-loss test. |
| New Highway or Tunnel Corridor | Design zones, communication routes, fallback scenes, manual authority and acceptance records as one coordinated system. | Cabinet and circuit FAT, feeder-noise test, gateway-restart test and site acceptance records. |
| Mixed Road and Tunnel Program | Use one management platform while preserving separate rules for roadway sections, portals, transition zones and tunnel interiors. | Separate scene ownership, circuit boundaries, sensor-error test and road/tunnel SAT cases. |
Dedicated Sub-page: Adaptive Tunnel Lighting Control System
For specialized engineering parameters regarding CIE 88 threshold zones, portal luminance sensors ($L_{20}$), emergency dimming loops (<100ms), and tunnel-specific video case studies, explore our dedicated landing page:
MEASUREMENT, FEEDBACK AND RECONCILIATION
Which States Must the Owner See and Reconcile?
Grid
Supply events and metered electrical conditions at the declared project boundary.
Cabinet
Door status, cabinet temperature, gateway status, meter data and local-control status where included.
Circuit
Switching state, load, power, abnormal conditions and circuit alarms.
Lamp
Communication, dimming command, status feedback and selected driver or sensor data.
FAILURE STATES, SAFE FALLBACK AND RECOVERY
How Should the System Respond to Communication and Field Abnormalities?
| Condition | Required Control Behavior | Witness Method |
|---|---|---|
| Central Platform or WAN Loss | Edge zones retain approved schedules and safe local scenes; buffered records synchronize without creating conflicting commands. | Disconnect the platform or WAN and verify local operation, event buffering and controlled reconciliation. |
| Noisy Power Feeder | Segment OFDM PLC paths and add another route only where measured conditions justify it. | Operate representative feeders under measured electrical noise and record route quality, retries and fallback behavior. |
| Sensor Error or Stale Data | Apply plausibility, stale-data and conservative fallback rules before a safety-relevant action. | Inject stale, implausible and missing inputs; verify rejection, alarm, bounded local action and recovery. |
| Gateway Restart | Use deterministic startup, restored configuration and unresolved-exception reporting. | Restart a representative gateway under load and verify startup, lamp feedback and restored local authority. |
SURVEY, PILOT, FAT, SAT AND OWNER HANDOVER
How Should the Project Move from Inputs to Accepted Operation?
TECHNICAL VALUES, CONDITIONS AND EVIDENCE LIMITS
Which Parameters Must Be Fixed before Procurement Approval?
| Engineering Item | Required Boundary or Evidence |
|---|---|
| Control Hierarchy | Define the central platform, edge gateway, intelligent cabinet, circuit group, lamp-level controller and manual authority as separate responsibility layers. |
| PLC Line Distance Limit | Up to 400 meters measured strictly as the line distance from the power distribution transformer/cabinet to the first luminaire node under noisy conditions. |
| Cellular Communication Routes | Cat-1 / NB-IoT / 4G cellular uplink modules backed by 3–4 years of high-volume annual batch deployments across municipal street light and highway networks. |
| Manufacturing Experience | 21 years of design and manufacturing experience in smart electronics and industrial lighting controls (strictly excludes single component service life). |
| Excluded System Standards | DALI protocol is explicitly excluded from giant municipal and expressway scales; native OFDM PLC / RS-485 protocols are enforced. |
| DC Power Cabinet Deployments | Over 100 active municipal infrastructure cases, optimized for ~1km long tunnel topologies and cross-sea bridge-tunnel connection lines. |
| Offline Operation | Approved local schedules and safety scenes should continue during central-platform or WAN loss, by controlled synchronization. |
| Adaptive CCT and Sensing | Fix sensor type, calibration, CCT range, scene boundaries, ramp rates, fallback rules and witness conditions for the selected configuration. |
| Interfaces and APIs | Interfaces are project-configured according to local regulations, owner requirements and third-party system responsibilities; no universal protocol package is implied. |
| Acceptance | Road, portal and tunnel functions require separate FAT/SAT cases, state-feedback records and a designated approval authority. |
OWNER, EPC AND PROCUREMENT DECISIONS
What Must the Highway Authority Confirm before Tender Award?
What Remains Operational without the Central Platform?
Witness a WAN-disconnection test and confirm that edge cabinets retain approved scenes, buffer records and recover without unsafe field-state changes.
Who Owns Local and Manual Authority?
The interface schedule should identify locally held scenes, alarm priorities, manual override, command ownership and the party authorized to approve changes.
How Are Road and Tunnel Rules Separated?
Require separate scene ownership, priority rules, circuits and FAT/SAT cases for roadway, portal, transition and tunnel-interior functions.
How Can the Owner Restore the System Years Later?
Require configuration backups, administrator rights, compatibility records, replacement strategy, restore instructions and a witnessed recovery exercise.
