Spiral and Helical shaped gas lamp quartz glass for high quality xenon flash tube light for high intensity professional photography and stroboscope device

Spiral-Shaped Xenon Flash Tube/Lamp for  Warning/Security Application,Stroboscope Device

Part I: Core Value and Application Context

We specialize in providing Spiral/Helical xenon flash tubes engineered specifically for warning, aviation, industrial safety, and high-power pulsed illumination applications. In these fields, extreme reliability, ultra-high peak intensity, and stable pulsed output are essential.

Our Commitment: Our spiral xenon lamps are designed to deliver maximum luminous efficiency and ultra-long service life, maintaining extremely low failure rates even under high vibration, rapid temperature cycling, humidity, and high-power pulse loads.

Key Performance Advantages:
1. Ultra-High Energy Density The helical/spiral geometry dramatically increases effective arc length within compact dimensions, offering: 1). Up to 80–100% higher power capacity compared to U-shaped versions of similar size 2).Higher peak discharge current capability 3). Greater light output per pulse for demanding warning & beacon applications Ideal for multi-joule high-voltage xenon systems

2. 360° Omnidirectional Light Radiation

The spiral arc structure produces highly uniform 360° pulsed light, ideal for rotating beacons, obstruction lights, tower warning lights, and high-intensity emergency signaling.

3. Extreme Reliability

Instant ignition with low misfire rate Stable performance from −40°C to +85°C Excellent vibration and shock resistance due to its compact coil structure Long lifespan with quartz envelope and optimized electrode geometry

Part II: Technical Q&A and Competitive Advantage

Q1: What advantages does the Spiral/Helical design offer compared with U-shaped or linear xenon tubes?

The spiral xenon tube is preferred for high-intensity warning equipment due to: 1. Maximum Power in Limited Space The helical structure allows very long arc length to be packed into a compact size: Higher stored energy capacity Higher peak luminous intensity Enhanced thermal distribution for long-term stability

2. Efficient Reflector Integration

The cylindrical and symmetrical shape matches rotating beacon optics, providing: Excellent 360° uniformity Efficient reflector matching Strong penetration through fog, rain, snow

3. Designed for High-Energy Pulse Applications

Spiral tubes naturally support multi-joule discharges, making them ideal for: Airport & aviation warning lights High-energy vehicle strobe systems Industrial emergency beacons Laser pumping and scientific illumination

Q2: Why LED warning lights still cannot fully replace Xenon Flash Tubes?

Even with LED development, xenon spiral tubes remain irreplaceable in high-peak-intensity pulsed applications:

1. Absolute Peak Power Spiral xenon tubes can release megawatt-level optical pulses within microseconds: Peak brightness can reach Megacandela (Mcd) levels Ensures visibility under midday sunlight, dust, fog, or snow LED arrays cannot safely reach similar instantaneous intensity

2. Optical Simplicity & Coverage

Xenon’s near-point-source characteristics allow simple reflectors to produce: Strong 360° coverage High efficiency without complex lenses LED systems require expensive arrays + thermal systems to approximate similar results.

3. Higher Cost-Performance Ratio

To match xenon’s peak output, LEDs need: High-power LED clusters Large heat sinks Complex drivers Total system cost is often higher than a xenon spiral tube + driver.

Q3: How is reliability ensured in low-temperature and vibration applications?

We apply specialized processes to maximize spiral tube durability:

1. Extreme Environmental Adaptation Optimized xenon filling pressure Stable ignition voltage across −40°C to +85°C Quartz envelope with superior insulation and UV stability

2. Anti-Vibration Mechanical Structure

Spiral architecture distributes stress evenly Tungsten electrodes reinforced with high-precision clamping Strong resistance to: vehicle vibration tower structure resonance industrial machinery shocks

Part III: Key Technical Specifications & Customization Range (OEM Procurement Reference)

Specifications (Typical Range)

1. Energy Range: Standard options: 8Ws / 10Ws / 15Ws / 20Ws

Maximum capacity: up to 200Ws+ depending on coil length & diameter

2. Voltage Range: Minimum ignition/anode voltage: 190–260VDC Standard operating range: 300–360VDC Maximum anode voltage supported: 500VDC

3. Glass Envelope: Premium quartz glass Heat resistance & UV stability 10,000,000+ flashes lifespan

4. Customization: Spiral diameter Coil pitch Arc length Trigger wire configuration Photometric output requirement SAE / ECE compliant designs

5. Product Family: We support full xenon lamp categories: Linear U-shape Spiral / Helical Circular Ring Shape Covering the entire warning & beacon industry.

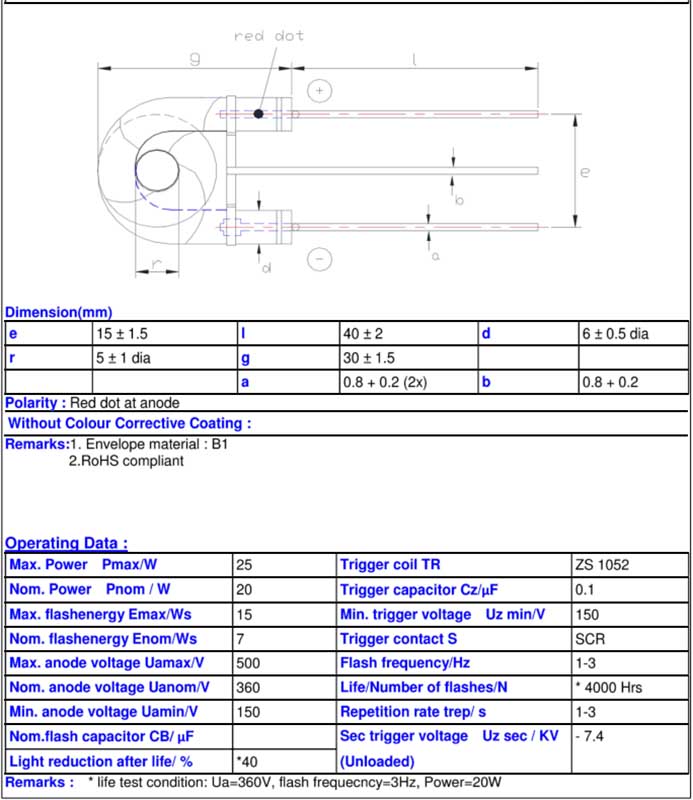

Parameter Sheet:

Part IV: Contact and Customization Service (Call to Action) 【High-Energy Spiral Tube Specialist】Get Your Tailored Helical Xenon Flash Solution

We offer full customization:

• Spiral diameter

• Coil turns & arc length

• Electrode type

• Pin/lead configuration

• Color filter coating

• Driver matching parameters

We also provide free engineering consultation for fixture integration and reflector design.

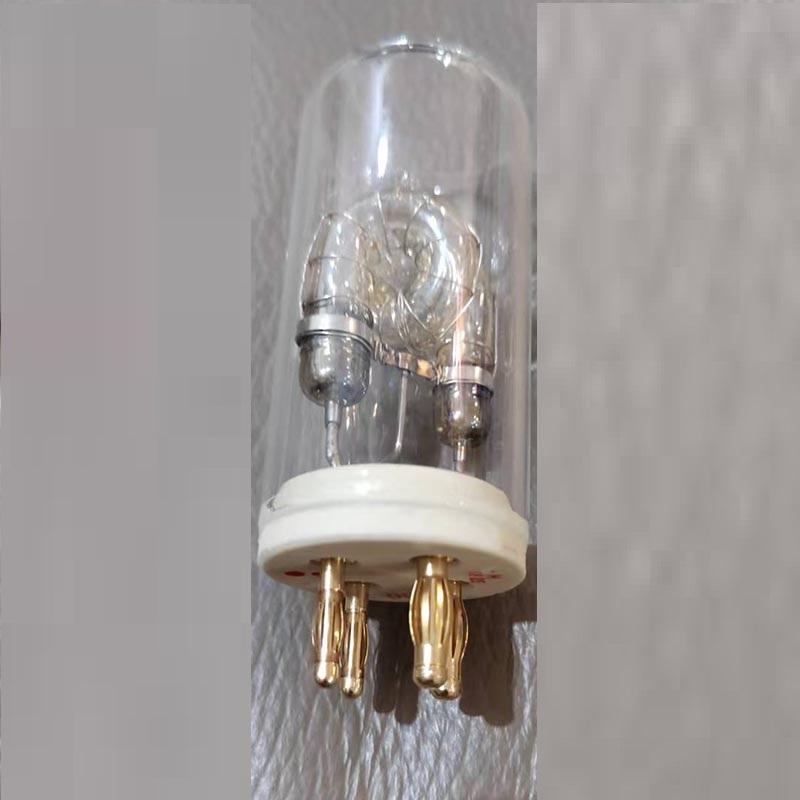

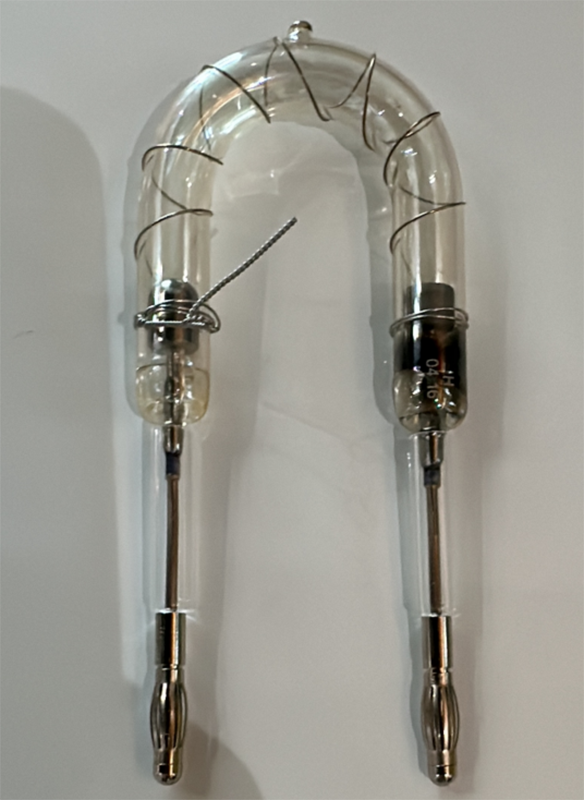

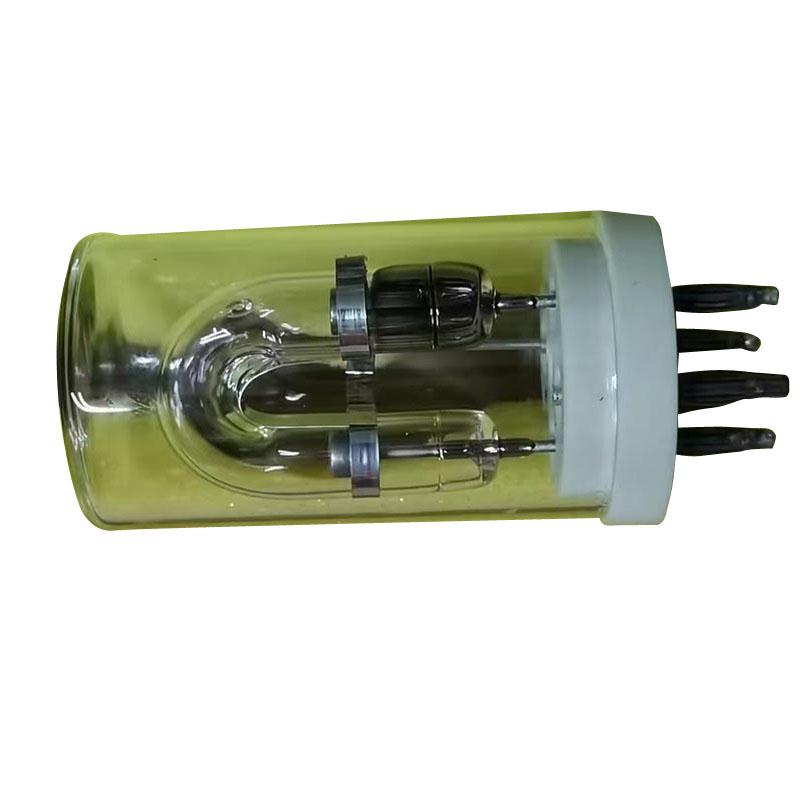

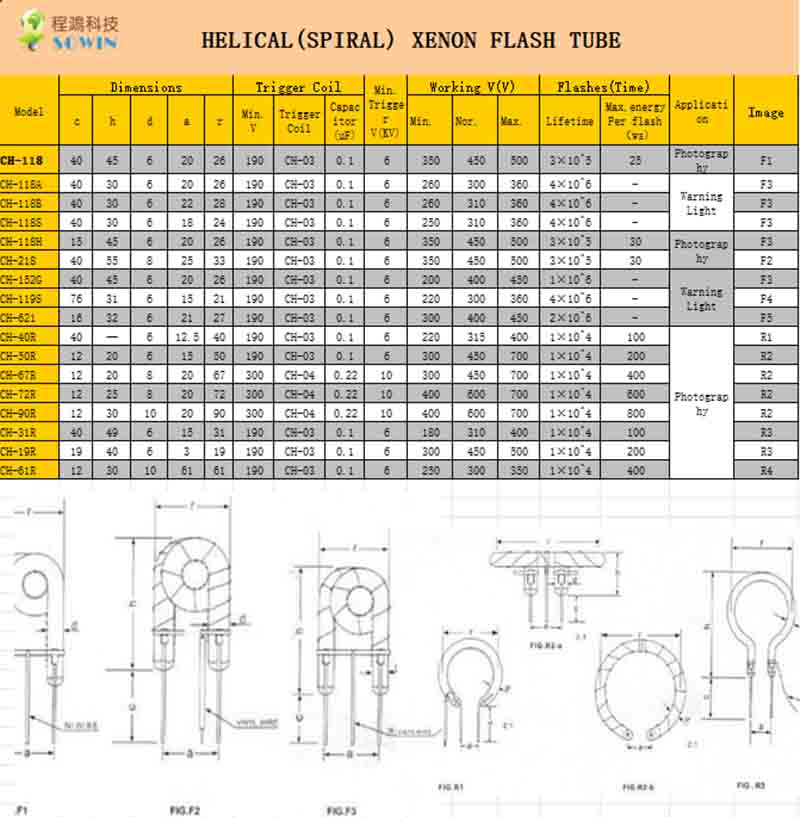

Few of the popular models for customers reference:

Please provide your key details for an immediate quotation:

• Desired energy (Ws)

• Operating voltage

• Tube dimensions

• Application scenario

• Optical output requirement

Our engineers will respond with a complete proposal within 24 hours.

Authority Endorsement & Quality Commitment

Every spiral xenon lamp undergoes:

• High/low temperature cycling

• Vibration stress testing

• Ignition voltage consistency tests

• 100% functional verification

By choosing our spiral/helical xenon tubes, you ensure non-stop operational reliability in the harshest environments.
