3) Core Engineering Advantages

1. Ultra-High Peak Intensity — Beyond the Physical Limits of LEDs

Xenon flash lamps generate extremely high peak luminous intensity within microsecond-to-millisecond pulses by rapidly discharging stored capacitor energy through ionized xenon gas.

• Peak brightness: can be 10–100 times higher than high-power LEDs at comparable pulse durations
• Benefit: enables clear visibility on large, dark, or fast-moving objects
• Ideal for: stroboscopic observation, motion freezing, and high-speed measurement

Why LEDs cannot replace xenon: LEDs are constrained by semiconductor junction temperature and current density. Attempting to achieve similar peak output results in rapid thermal degradation or device failure.

2. Fast Trigger Response & Microsecond-Level Stop-Motion Capability

The flash duration of a xenon lamp is a pure physical discharge process, not limited by electronic driver switching speed.

• Typical T_0.5 (half-power width): 1–5 microseconds
• Delivers exceptionally sharp frozen images of: turbine blades, high-speed rollers, ultra-high RPM rotating shafts

In contrast, industrial LED systems suffer from driver latency, current rise-time limitations, and timing jitter at high frequencies. This makes xenon the preferred solution for precision RPM measurement, phase alignment, and vibration analysis.

3. Stable Flash Output Across Wide Operating Frequencies

Xenon flash lamps maintain consistent light output from single-shot flashes to high-frequency repetitive operation.

• No thermal roll-off during short, high-energy pulses
• Uniform brightness across varying repetition rates
• Reliable performance in continuous industrial duty cycles

LED systems typically experience output instability or brightness decay under equivalent pulsed-load conditions.

4. High Joule Energy Per Pulse for Long-Range & Large-Scale Illumination

Industrial xenon flash lamps support high joule-level energy discharge, enabling long-distance illumination, wide-area inspection coverage, and effective lighting through contaminated air paths.

This capability is essential for steel sheet inspection, large printing presses, and production-line monitoring, where LED strobes lack sufficient penetration and coverage.

5. Deep Penetration in Harsh Industrial Environments

Many industrial facilities contain oil mist, steam, dust, smoke, or airborne fibers, such as paper mills, textile plants, steel processing lines, and chemical or petrochemical facilities.

Thanks to its high peak radiant power, xenon light penetrates atmospheric interference more effectively than LED illumination, maintaining high contrast, clear edge definition, and reliable visual and camera-based observation.

6. Broad-Spectrum White Light with True Color Rendering

Xenon flash lamps emit continuous broadband white light closely resembling natural daylight.

• CRI near 100
• No spectral gaps
• Accurate color perception of markings, surfaces, and defects

LED systems, based on narrow-band emission or phosphor conversion, may introduce spectral distortion, affecting inspection accuracy.

7. Electrical & Electromagnetic Robustness (EMC Advantage)

Although xenon lamps require a high-voltage trigger pulse, the lamp itself is a simple gas-filled quartz tube—free of semiconductor junctions and immune to thermal runaway and latch-up.

This provides exceptional reliability in environments with strong electromagnetic interference (EMI), electrical noise, unstable power conditions, or ionizing radiation exposure.

8. Predictable End-of-Life & Reduced Maintenance Risk

Unlike LEDs, which may fail suddenly, xenon flash lamps typically exhibit gradual end-of-life behavior, such as reduced flash intensity or occasional misfiring at high repetition rates. This enables planned preventive maintenance and reduces unexpected downtime.

9. Modular OEM Replacement & System Compatibility

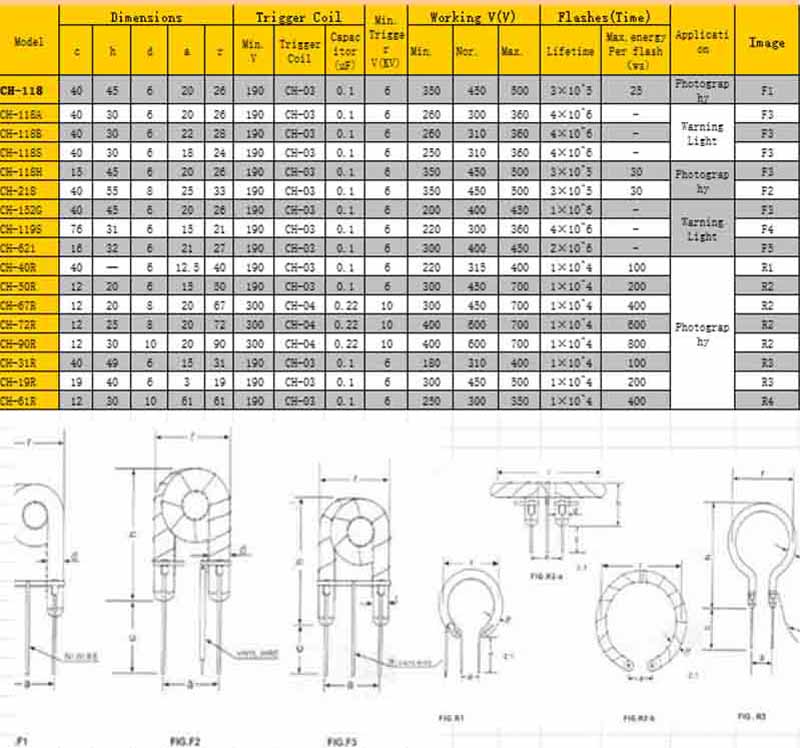

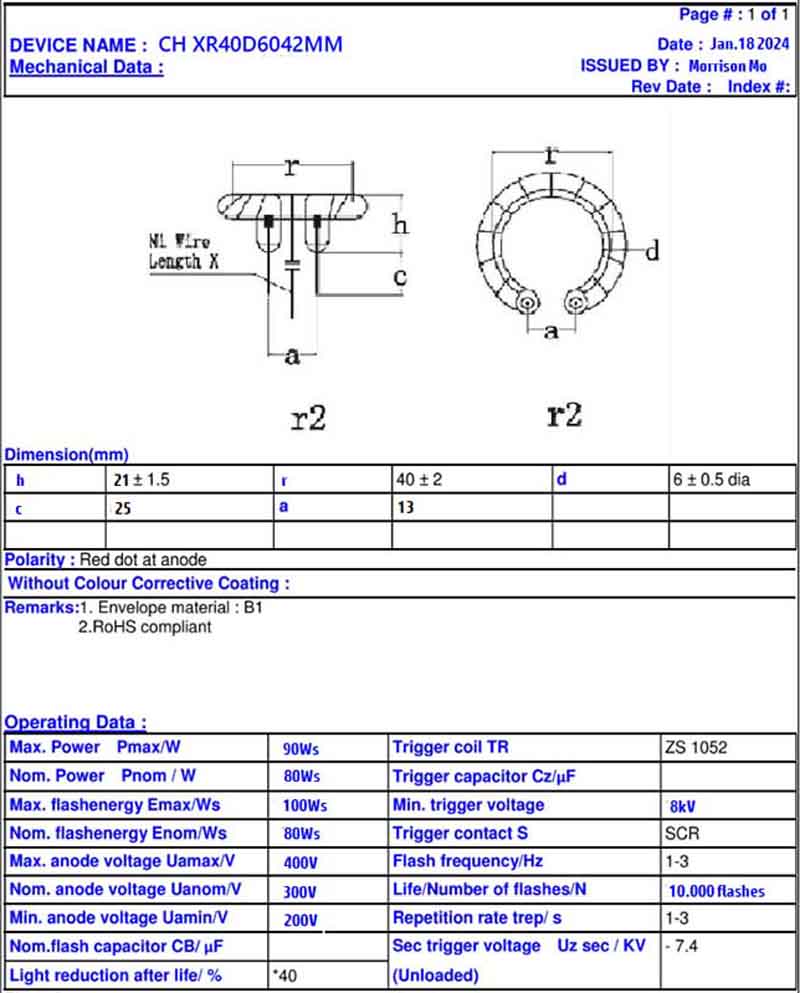

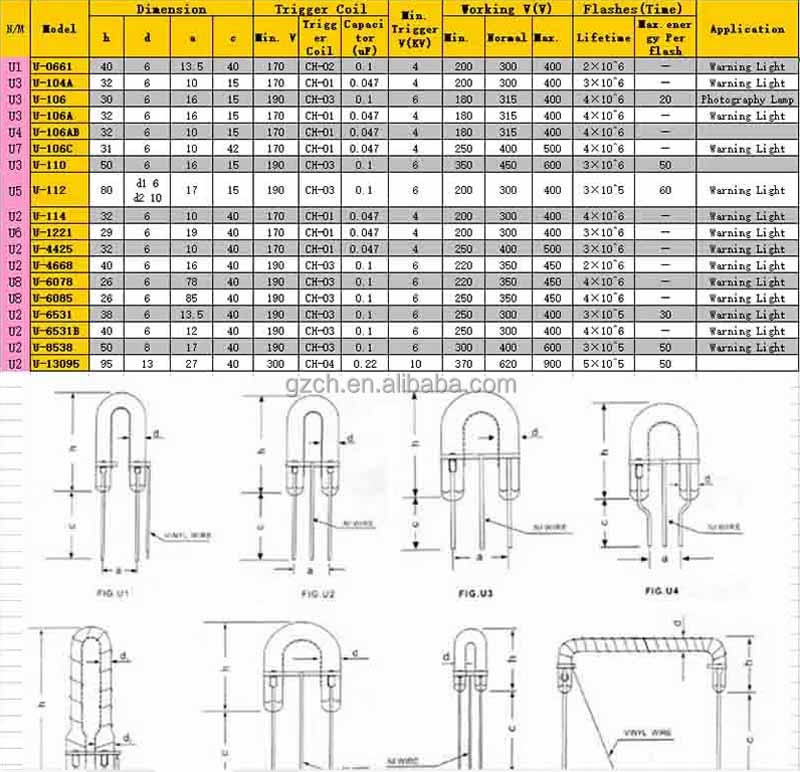

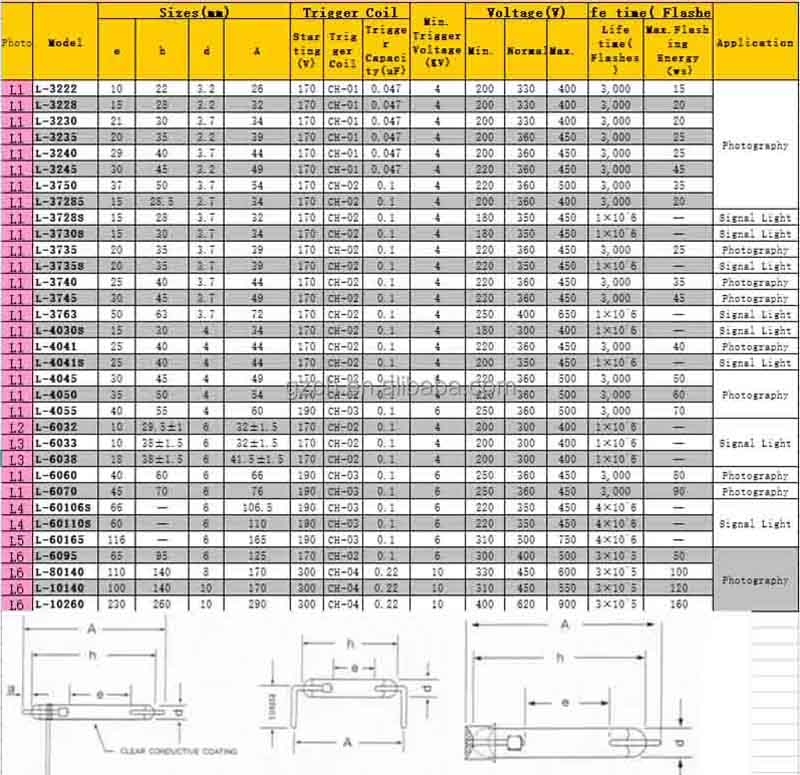

Industrial xenon flash lamps are available in multiple configurations (linear, U-shaped, spiral, circular) and are designed for plug-and-play replacement in most legacy and modern stroboscope systems.

• Fast servicing
• Lower lifecycle cost
• Compatibility with existing power supplies

Replacing a xenon tube is often significantly simpler and more economical than repairing high-power LED arrays with complex cooling and driver electronics.

Xenon vs LED — Engineering Decision Matrix

While LED strobe lights are widely used in low-power and low-speed applications, their physical limitations make them unsuitable for many high-speed, high-energy industrial measurement tasks. The table below summarizes the engineering differences.

Engineering conclusion: When microsecond timing, extreme brightness, true color, and reliability are required, xenon flash technology remains the industrial reference standard.

Recommended Next Steps

Based on your scenario, use the links below to move from engineering principles to application-ready selection guidance.

Each application page should link back to this reference page to reinforce topical authority (Topic Cluster) and strengthen SEO.

4) Industrial Application Matrix

Engineering Conclusion

For industrial applications demanding extreme peak brightness, microsecond-level timing precision, broadband spectral output, and long-term reliability in harsh environments, xenon flash lamps remain the undisputed reference technology—well beyond the physical limits of LED-based solutions.
