High-Performance Xenon Flash Tubes for Stroboscopic, Warning & Industrial Applications
Reliable, High-Intensity Light Source for Precision Measurement, Safety, and Professional Use
Overview
We specialize in producing high-quality xenon flash tubes in various shapes, including linear, U-shaped, spiral, and circular designs, engineered for demanding applications across industries such as stroboscopic measurement, traffic and industrial warning lights, professional photography, aviation, scientific instruments, and more. These flash tubes provide high-intensity light output, fast response, and long lifespan, ensuring consistent performance even in extreme environments.
With over 25 years of manufacturing experience, we offer a reliable and cost-effective lighting solution for professionals worldwide, including lighting manufacturers, research institutes, laboratories, universities, and global wholesalers and retailers.
Core Product Features
Extremely Intense & Stable Light Output
White / Blue-White Light: Provides broad spectrum, ideal for freezing high-speed motion and ensuring accurate measurements.
High Peak Luminous Intensity: Ensures clear motion freezing for precise analysis.
Flash-to-Flash Consistency: Delivers reliable performance across multiple flashes, maintaining accuracy.
Fast Response for High-Speed Measurement
Microsecond to Millisecond Pulse Duration: Perfect for applications requiring rapid flashes, such as RPM measurement and vibration analysis.
Ideal for Motion Detection: Ensures precise measurement and inspection of high-speed motion.
Long Lifetime – Reduced Replacement Costs
≥ 10,000,000 Flashes: Designed for long operational life, significantly reducing maintenance and replacement costs.
Stable Electrode Structure: Optimized design ensures continuous operation for extended periods.
Wide Voltage Compatibility
Trigger Voltage: 2 kV – 10 kV.
Operating Voltage after Ionization: 200V – 600V, ensuring compatibility with most stroboscope power supplies.
Why Choose Xenon Flash Tubes?
Unmatched Peak Intensity
Xenon flash tubes can produce extremely high peak luminous intensity in a fraction of a millisecond, reaching megacandela (Mcd) levels. This intense pulse of light ensures superior visibility in fog, rain, snow, or even bright sunlight, making them ideal for emergency and industrial applications.
Simple Optics
The near-point-source characteristic of xenon flash tubes allows designers to use basic reflectors to achieve uniform 360° light coverage, making the design simpler and more cost-effective compared to LED systems, which require complex arrays and lenses.
Cost-Effective
Xenon flash tubes offer lower total costs than high-power LED arrays because they don’t require expensive heat dissipation systems or complex optical designs to achieve similar peak brightness.
Material Options – Tailored to Different Market Needs
Industrial Quartz / Fused Silica (Germany Origin)
High Thermal Resistance: Suitable for high-temperature environments.
Excellent UV Transmission: Ideal for professional, scientific, and heavy-duty applications.
Borosilicate Glass (Economic Solution)
Cost-Effective: Stable performance for standard industrial applications, making it perfect for budget-conscious projects.
Fully Customizable Designs (OEM Supported)

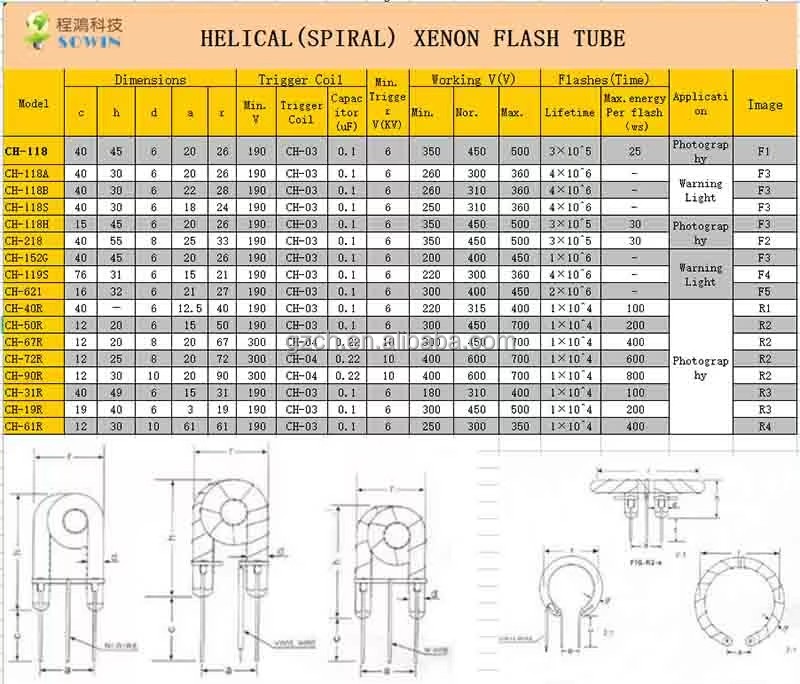

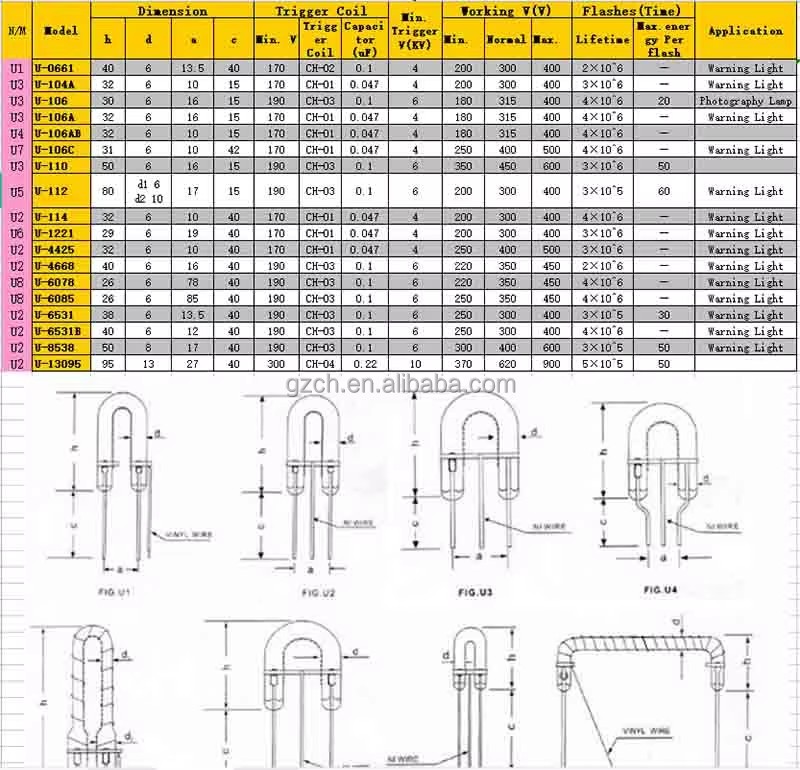

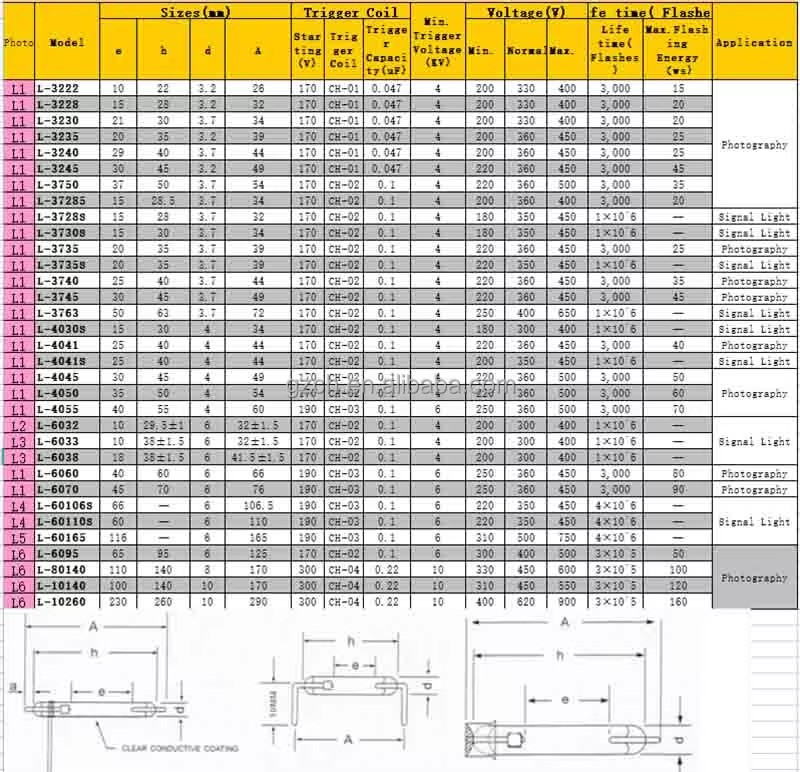

Shapes Available: Linear, U-shaped, Helical/Spiral, Circular/Ring, Door-shaped, and Special Geometry.
Customizable Dimensions: Diameter, arc length, electrode configuration tailored to your specifications.
Perfect for OEM Needs: Designed for private-label stroboscopes and warning light manufacturers.
How Xenon Flash Tubes Work (Technical Overview)
Trigger Pulse:
A high-voltage pulse ionizes the xenon gas inside the tube, starting the discharge process.
Energy Discharge:
The capacitor releases its stored energy once the gas becomes conductive, producing the flash.
Light Emission:
Excited xenon atoms emit an extremely bright flash, with high peak intensity, ensuring visibility even in difficult conditions.
Applications
Xenon flash tubes are widely used in various industries, including:
Industrial Stroboscopes & RPM Measurement
Traffic & Industrial Warning Beacons
Camera & Photographic Flash Systems
Aviation Obstruction & Aircraft Warning Lights
UV Sterilization & Insect Control Systems
Stage & Entertainment Lighting
Laser Pumping & Scientific Instruments
IPL Hair Removal & Beauty Devices
Laser Marking Machines
Large Industrial Printing Equipment

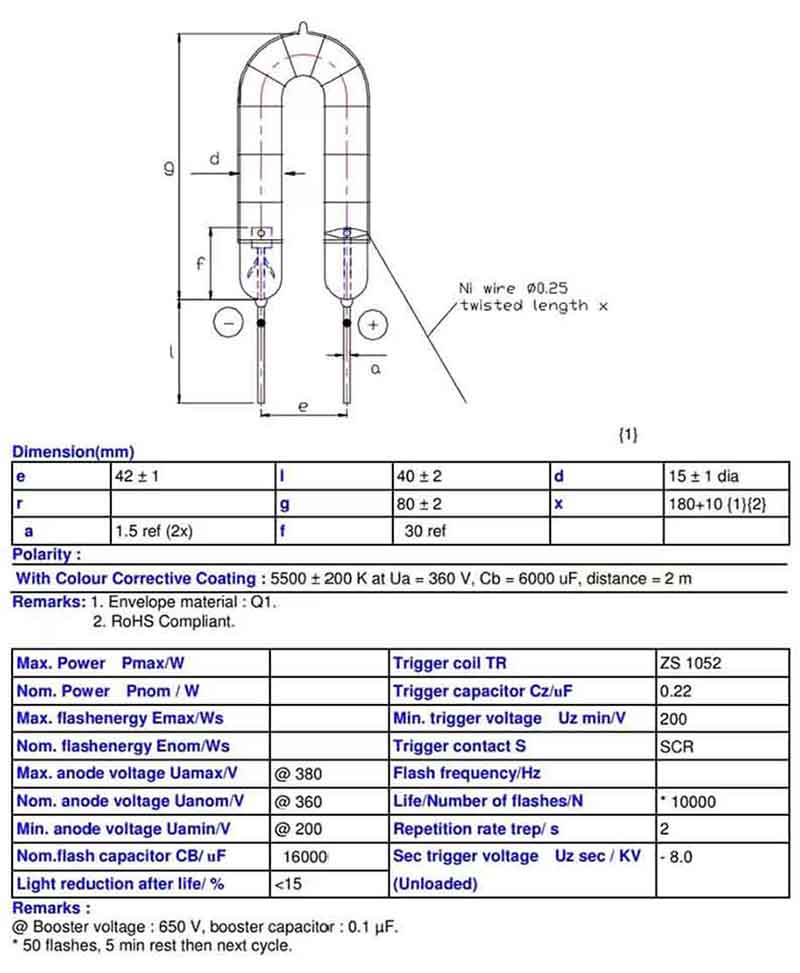

Technical Specifications (Typical)
Parameter Specification
Power Range 6 W / 15 W / 30 W up to 100 W
Tube Diameter 6 mm – 12 mm
Lifespan ≥ 10,000,000 flashes
Max. Anode Voltage 400 V
Nominal Anode Voltage 350 V
Min. Anode Voltage 220 V
Trigger Voltage 2 kV – 10 kV
Parameters can be customized to meet your circuit design needs.
Manufacturing & Quality Control
Precision Gas Filling Process: Ensures optimal performance and long lifespan.
Strict Electrode Alignment Control: Guarantees stability during high-frequency operations.
Aging Test Before Shipment: Ensures each tube meets high-performance standards.
Stable Batch-to-Batch Consistency: Ensures reliability across production runs, making them ideal for long-term supply projects.
OEM & Custom Support
We offer:
OEM/ODM Orders
Custom Dimensions & Shapes
Voltage & Lifetime Optimization
Bulk Supply for Stroboscope Manufacturers
Contact Us Today for:
Technical Consultation
Drawing Confirmation
Sample Support
Fast Quotat
High-Performance Xenon Flash Tubes for Stroboscopic, Warning & Industrial Applications
Reliable, High-Intensity Light Source for Precision Measurement, Safety, and Professional Use
Overview
We specialize in producing high-quality xenon flash tubes in various shapes, including linear, U-shaped, spiral, and circular designs, engineered for demanding applications across industries such as stroboscopic measurement, traffic and industrial warning lights, professional photography, aviation, scientific instruments, and more. These flash tubes provide high-intensity light output, fast response, and long lifespan, ensuring consistent performance even in extreme environments.
With over 25 years of manufacturing experience, we offer a reliable and cost-effective lighting solution for professionals worldwide, including lighting manufacturers, research institutes, laboratories, universities, and global wholesalers and retailers.
Core Product Features
Extremely Intense & Stable Light Output
White / Blue-White Light: Provides broad spectrum, ideal for freezing high-speed motion and ensuring accurate measurements.
High Peak Luminous Intensity: Ensures clear motion freezing for precise analysis.
Flash-to-Flash Consistency: Delivers reliable performance across multiple flashes, maintaining accuracy.
Fast Response for High-Speed Measurement
Microsecond to Millisecond Pulse Duration: Perfect for applications requiring rapid flashes, such as RPM measurement and vibration analysis.
Ideal for Motion Detection: Ensures precise measurement and inspection of high-speed motion.
Long Lifetime – Reduced Replacement Costs
≥ 10,000,000 Flashes: Designed for long operational life, significantly reducing maintenance and replacement costs.
Stable Electrode Structure: Optimized design ensures continuous operation for extended periods.
Wide Voltage Compatibility
Trigger Voltage: 2 kV – 10 kV.
Operating Voltage after Ionization: 200V – 600V, ensuring compatibility with most stroboscope power supplies.
Why Choose Xenon Flash Tubes?
Unmatched Peak Intensity
Xenon flash tubes can produce extremely high peak luminous intensity in a fraction of a millisecond, reaching megacandela (Mcd) levels. This intense pulse of light ensures superior visibility in fog, rain, snow, or even bright sunlight, making them ideal for emergency and industrial applications.
Simple Optics
The near-point-source characteristic of xenon flash tubes allows designers to use basic reflectors to achieve uniform 360° light coverage, making the design simpler and more cost-effective compared to LED systems, which require complex arrays and lenses.
Cost-Effective
Xenon flash tubes offer lower total costs than high-power LED arrays because they don’t require expensive heat dissipation systems or complex optical designs to achieve similar peak brightness.
Material Options – Tailored to Different Market Needs
Industrial Quartz / Fused Silica (Germany Origin)
High Thermal Resistance: Suitable for high-temperature environments.
Excellent UV Transmission: Ideal for professional, scientific, and heavy-duty applications.
Borosilicate Glass (Economic Solution)
Cost-Effective: Stable performance for standard industrial applications, making it perfect for budget-conscious projects.
Fully Customizable Designs (OEM Supported)
Shapes Available: Linear, U-shaped, Helical/Spiral, Circular/Ring, Door-shaped, and Special Geometry.
Customizable Dimensions: Diameter, arc length, electrode configuration tailored to your specifications.
Perfect for OEM Needs: Designed for private-label stroboscopes and warning light manufacturers.
How Xenon Flash Tubes Work (Technical Overview)
Trigger Pulse:
A high-voltage pulse ionizes the xenon gas inside the tube, starting the discharge process.
Energy Discharge:
The capacitor releases its stored energy once the gas becomes conductive, producing the flash.
Light Emission:
Excited xenon atoms emit an extremely bright flash, with high peak intensity, ensuring visibility even in difficult conditions.
Applications
Xenon flash tubes are widely used in various industries, including:
Industrial Stroboscopes & RPM Measurement
Traffic & Industrial Warning Beacons
Camera & Photographic Flash Systems
Aviation Obstruction & Aircraft Warning Lights
UV Sterilization & Insect Control Systems
Stage & Entertainment Lighting
Laser Pumping & Scientific Instruments
IPL Hair Removal & Beauty Devices
Laser Marking Machines
Large Industrial Printing Equipment
Technical Specifications (Typical)
Parameter Specification
Power Range 6 W / 15 W / 30 W up to 100 W
Tube Diameter 6 mm – 12 mm
Lifespan ≥ 10,000,000 flashes
Max. Anode Voltage 400 V
Nominal Anode Voltage 350 V
Min. Anode Voltage 220 V
Trigger Voltage 2 kV – 10 kV
Parameters can be customized to meet your circuit design needs.
Manufacturing & Quality Control
Precision Gas Filling Process: Ensures optimal performance and long lifespan.
Strict Electrode Alignment Control: Guarantees stability during high-frequency operations.
Aging Test Before Shipment: Ensures each tube meets high-performance standards.
Stable Batch-to-Batch Consistency: Ensures reliability across production runs, making them ideal for long-term supply projects.
OEM & Custom Support
We offer:
OEM/ODM Orders
Custom Dimensions & Shapes
Voltage & Lifetime Optimization
Bulk Supply for Stroboscope Manufacturers
Contact Us Today for:
Technical Consultation
Drawing Confirmation
Sample Support
Fast QuotationHigh-Performance Xenon Flash Tubes for Stroboscopic, Warning & Industrial Applications
Reliable, High-Intensity Light Source for Precision Measurement, Safety, and Professional Use
Overview
We specialize in producing high-quality xenon flash tubes in various shapes, including linear, U-shaped, spiral, and circular designs, engineered for demanding applications across industries such as stroboscopic measurement, traffic and industrial warning lights, professional photography, aviation, scientific instruments, and more. These flash tubes provide high-intensity light output, fast response, and long lifespan, ensuring consistent performance even in extreme environments.
With over 25 years of manufacturing experience, we offer a reliable and cost-effective lighting solution for professionals worldwide, including lighting manufacturers, research institutes, laboratories, universities, and global wholesalers and retailers.
Core Product Features
Extremely Intense & Stable Light Output
White / Blue-White Light: Provides broad spectrum, ideal for freezing high-speed motion and ensuring accurate measurements.
High Peak Luminous Intensity: Ensures clear motion freezing for precise analysis.
Flash-to-Flash Consistency: Delivers reliable performance across multiple flashes, maintaining accuracy.
Fast Response for High-Speed Measurement
Microsecond to Millisecond Pulse Duration: Perfect for applications requiring rapid flashes, such as RPM measurement and vibration analysis.
Ideal for Motion Detection: Ensures precise measurement and inspection of high-speed motion.
Long Lifetime – Reduced Replacement Costs
≥ 10,000,000 Flashes: Designed for long operational life, significantly reducing maintenance and replacement costs.
Stable Electrode Structure: Optimized design ensures continuous operation for extended periods.
Wide Voltage Compatibility
Trigger Voltage: 2 kV – 10 kV.
Operating Voltage after Ionization: 200V – 600V, ensuring compatibility with most stroboscope power supplies.
Why Choose Xenon Flash Tubes?
Unmatched Peak Intensity
Xenon flash tubes can produce extremely high peak luminous intensity in a fraction of a millisecond, reaching megacandela (Mcd) levels. This intense pulse of light ensures superior visibility in fog, rain, snow, or even bright sunlight, making them ideal for emergency and industrial applications.
Simple Optics
The near-point-source characteristic of xenon flash tubes allows designers to use basic reflectors to achieve uniform 360° light coverage, making the design simpler and more cost-effective compared to LED systems, which require complex arrays and lenses.
Cost-Effective
Xenon flash tubes offer lower total costs than high-power LED arrays because they don’t require expensive heat dissipation systems or complex optical designs to achieve similar peak brightness.
Material Options – Tailored to Different Market Needs
Industrial Quartz / Fused Silica (Germany Origin)
High Thermal Resistance: Suitable for high-temperature environments.
Excellent UV Transmission: Ideal for professional, scientific, and heavy-duty applications.
Borosilicate Glass (Economic Solution)
Cost-Effective: Stable performance for standard industrial applications, making it perfect for budget-conscious projects.
Fully Customizable Designs (OEM Supported)
Shapes Available: Linear, U-shaped, Helical/Spiral, Circular/Ring, Door-shaped, and Special Geometry.
Customizable Dimensions: Diameter, arc length, electrode configuration tailored to your specifications.
Perfect for OEM Needs: Designed for private-label stroboscopes and warning light manufacturers.
How Xenon Flash Tubes Work (Technical Overview)
Trigger Pulse:
A high-voltage pulse ionizes the xenon gas inside the tube, starting the discharge process.
Energy Discharge:
The capacitor releases its stored energy once the gas becomes conductive, producing the flash.
Light Emission:
Excited xenon atoms emit an extremely bright flash, with high peak intensity, ensuring visibility even in difficult conditions.
Applications
Xenon flash tubes are widely used in various industries, including:
Industrial Stroboscopes & RPM Measurement
Traffic & Industrial Warning Beacons
Camera & Photographic Flash Systems
Aviation Obstruction & Aircraft Warning Lights
UV Sterilization & Insect Control Systems
Stage & Entertainment Lighting
Laser Pumping & Scientific Instruments
IPL Hair Removal & Beauty Devices
Laser Marking Machines
Large Industrial Printing Equipment
Technical Specifications (Typical)
Parameter Specification
Power Range 6 W / 15 W / 30 W up to 100 W
Tube Diameter 6 mm – 12 mm
Lifespan ≥ 10,000,000 flashes
Max. Anode Voltage 400 V
Nominal Anode Voltage 350 V
Min. Anode Voltage 220 V
Trigger Voltage 2 kV – 10 kV
Parameters can be customized to meet your circuit design needs.
Manufacturing & Quality Control
Precision Gas Filling Process: Ensures optimal performance and long lifespan.
Strict Electrode Alignment Control: Guarantees stability during high-frequency operations.
Aging Test Before Shipment: Ensures each tube meets high-performance standards.
Stable Batch-to-Batch Consistency: Ensures reliability across production runs, making them ideal for long-term supply projects.
OEM & Custom Support
We offer:
OEM/ODM Orders
Custom Dimensions & Shapes
Voltage & Lifetime Optimization
Bulk Supply for Stroboscope Manufacturers
Contact Us Today for:
Technical Consultation
Drawing Confirmation
Sample Support
Fast Quotation
High-Performance Xenon Flash Tubes for Stroboscopic, Warning & Industrial Applications
Reliable, High-Intensity Light Source for Precision Measurement, Safety, and Professional Use
1. Overview
With world-class industrial design and manufacturing capabilities, we specialize in producing high-quality Xenon Flash Tubes in various shapes, including linear, U-shaped, spiral, and circular designs. Our tubes are meticulously engineered for demanding applications across diverse industries, such as stroboscopic instruments, warning beacon lights, traffic-violation cameras, professional photography, airport runway lighting, and solar simulation.
With over 25 years of manufacturing experience, we proudly serve thousands of customers worldwide, including professional lighting manufacturers, research institutes, laboratories, and universities. We provide a wide range of dimensions and trigger-control types, along with essential components such as trigger coils, transformers, and capacitors.
2. Core Product Features
2. Core Product Features
3. Why Choose Xenon Flash Tubes?
|
Feature
|
Description
|
|
Unmatched Peak Intensity
|
Produces megacandela (Mcd) levels for superior visibility in fog, rain, or bright sunlight.
|
|
Simple Optical Design
|
Near-point-source characteristics allow for uniform 360° coverage with basic reflectors.
|
|
Cost-Efficiency
|
Does not require expensive heat dissipation systems or complex lenses compared to high-power LED arrays.
|
|
Material Type
|
Characteristics & Applications
|
|
Industrial Quartz / Fused Silica
|
Origin: Germany. High thermal resistance and excellent UV transmission for scientific or heavy-duty use.
|
|
Borosilicate Glass
|
Stable performance for standard industrial applications; a cost-effective solution.
|
OEM & Custom Support:
|
Category
|
Customization Options
|
|
Shapes
|
Linear, U-shaped, Helical/Spiral, Circular/Ring, Door-shaped, and Special Geometry.
|
|
Technical Specs
|
Diameter, arc length, and electrode configuration tailored to your specific technical specifications.
|
5. Technical Specifications (Typical)
6. Diverse Industrial Applications
Safety & Signaling Traffic-violation cameras, police beacons, aviation obstruction, and aircraft warning lights.
Industrial Measurement Stroboscopes, RPM measurement, large industrial printing equipment, and timing systems.
Medical & Beauty IPL hair removal, skin treatments, freckle removal, and laser-pulse medical devices.
7. Manufacturing & Quality Control
Precision Gas Filling Ensures optimal ionization and extended lifespan for every tube.
100% Aging Test Each tube is tested before shipment to guarantee batch-to-batch consistency.
Completely Product series in Linear type, U-shape, Spiral/Helical, O-shape round shape, any customized sizes welcome!
High-Performance Xenon Flash Tubes for Stroboscopic, Warning & Industrial Applications
Reliable, High-Intensity Light Source for Precision Measurement, Safety, and Professional Use
1. Overview
With world-class industrial design and manufacturing capabilities, we specialize in producing high-quality Xenon Flash Tubes in various shapes, including linear, U-shaped, spiral, and circular designs. Our tubes are meticulously engineered for demanding applications across diverse industries, such as stroboscopic instruments, warning beacon lights, traffic-violation cameras, professional photography, airport runway lighting, and solar simulation.
With over 25 years of manufacturing experience, we proudly serve thousands of customers worldwide, including professional lighting manufacturers, research institutes, laboratories, and universities. We provide a wide range of dimensions and trigger-control types, along with essential components such as trigger coils, transformers, and capacitors.
2. Core Product Features
Feature Detailed Description
Intense Light Output High peak luminous intensity in white/blue-white spectrum; ideal for motion freezing.
Fast Response Microsecond to millisecond pulse duration; perfect for RPM & vibration analysis.
Long Lifetime ≥ 10,000,000 flashes; stable electrode structure reduces maintenance costs.
Wide Compatibility Trigger voltage 2kV–10kV; operating voltage 200V–600V after ionization.
导出到 Google 表格
3. Why Choose Xenon Flash Tubes?
Unmatched Peak Intensity: Produces megacandela (Mcd) levels for superior visibility in fog, rain, or bright sunlight.
Simple Optical Design: Near-point-source characteristics allow for uniform 360° coverage with basic reflectors.
Cost-Efficiency: Does not require expensive heat dissipation systems or complex lenses compared to high-power LED arrays.
4. Material Options & Customization
Premium Materials:
Industrial Quartz / Fused Silica (Germany Origin): High thermal resistance and excellent UV transmission for scientific/heavy-duty use.
Borosilicate Glass: Stable performance for standard industrial applications; cost-effective solution.
OEM & Custom Support:
Shapes: Linear, U-shaped, Helical/Spiral, Circular/Ring, Door-shaped, and Special Geometry.
Customization: Diameter, arc length, and electrode configuration tailored to your specific technical specifications.
5. Technical Specifications (Typical)
Parameter Specification Value
Power Range 6 W / 15 W / 30 W up to 100 W
Tube Diameter 6 mm – 12 mm
Lifespan ≥ 10,000,000 flashes
Max. Anode Voltage 400 V
Nominal Anode Voltage 350 V
Min. Anode Voltage 220 V
Trigger Voltage 2 kV – 10 kV
导出到 Google 表格
6. Diverse Industrial Applications
Safety & Signaling: Traffic-violation cameras, police beacons, aviation obstruction & aircraft warning lights.
Industrial Measurement: Stroboscopes, RPM measurement, Large industrial printing equipment, and timing systems.
Medical & Beauty: IPL hair removal, skin treatments, freckle removal, and laser-pulse medical devices.
Scientific & Tech: Solar simulation (AM1.5), UV sterilization, insect control, and laser pumping.
Entertainment: Stage stroboscopic lighting and professional studio flash systems.
7. Manufacturing & Quality Control
Precision Gas Filling: Ensures optimal ionization and extended lifespan.
Electrode Alignment: Strict control for stability during high-frequency operations.
100% Aging Test: Each tube is tested before shipment to guarantee batch-to-batch consistency.
Contact Us Today for Technical Consultation, Drawing Confirmation, and Fast Quotations.High-Performance Xenon Flash Tubes for Stroboscopic, Warning & Industrial Applications
Reliable, High-Intensity Light Source for Precision Measurement, Safety, and Professional Use
1. Overview
With world-class industrial design and manufacturing capabilities, we specialize in producing high-quality Xenon Flash Tubes in various shapes, including linear, U-shaped, spiral, and circular designs. Our tubes are meticulously engineered for demanding applications across diverse industries, such as stroboscopic instruments, warning beacon lights, traffic-violation cameras, professional photography, airport runway lighting, and solar simulation.
With over 25 years of manufacturing experience, we proudly serve thousands of customers worldwide, including professional lighting manufacturers, research institutes, laboratories, and universities. We provide a wide range of dimensions and trigger-control types, along with essential components such as trigger coils, transformers, and capacitors.
2. Core Product Features
Feature Detailed Description
Intense Light Output High peak luminous intensity in white/blue-white spectrum; ideal for motion freezing.
Fast Response Microsecond to millisecond pulse duration; perfect for RPM & vibration analysis.
Long Lifetime ≥ 10,000,000 flashes; stable electrode structure reduces maintenance costs.
Wide Compatibility Trigger voltage 2kV–10kV; operating voltage 200V–600V after ionization.
导出到 Google 表格
3. Why Choose Xenon Flash Tubes?
Unmatched Peak Intensity: Produces megacandela (Mcd) levels for superior visibility in fog, rain, or bright sunlight.
Simple Optical Design: Near-point-source characteristics allow for uniform 360° coverage with basic reflectors.
Cost-Efficiency: Does not require expensive heat dissipation systems or complex lenses compared to high-power LED arrays.
4. Material Options & Customization
Premium Materials:
Industrial Quartz / Fused Silica (Germany Origin): High thermal resistance and excellent UV transmission for scientific/heavy-duty use.
Borosilicate Glass: Stable performance for standard industrial applications; cost-effective solution.
OEM & Custom Support:
Shapes: Linear, U-shaped, Helical/Spiral, Circular/Ring, Door-shaped, and Special Geometry.
Customization: Diameter, arc length, and electrode configuration tailored to your specific technical specifications.
5. Technical Specifications (Typical)
Parameter Specification Value
Power Range 6 W / 15 W / 30 W up to 100 W
Tube Diameter 6 mm – 12 mm
Lifespan ≥ 10,000,000 flashes
Max. Anode Voltage 400 V
Nominal Anode Voltage 350 V
Min. Anode Voltage 220 V
Trigger Voltage 2 kV – 10 kV
导出到 Google 表格
6. Diverse Industrial Applications
Safety & Signaling: Traffic-violation cameras, police beacons, aviation obstruction & aircraft warning lights.
Industrial Measurement: Stroboscopes, RPM measurement, Large industrial printing equipment, and timing systems.
Medical & Beauty: IPL hair removal, skin treatments, freckle removal, and laser-pulse medical devices.
Scientific & Tech: Solar simulation (AM1.5), UV sterilization, insect control, and laser pumping.
Entertainment: Stage stroboscopic lighting and professional studio flash systems.
7. Manufacturing & Quality Control
Precision Gas Filling: Ensures optimal ionization and extended lifespan.
Electrode Alignment: Strict control for stability during high-frequency operations.
100% Aging Test: Each tube is tested before shipment to guarantee batch-to-batch consistency.
Contact Us Today for Technical Consultation, Drawing Confirmation, and Fast Quotations.High-Performance Xenon Flash Tubes for Stroboscopic, Warning & Industrial Applications
Reliable, High-Intensity Light Source for Precision Measurement, Safety, and Professional Use
Overview
We specialize in producing high-quality xenon flash tubes in various shapes, including linear, U-shaped, spiral, and circular designs, engineered for demanding applications across industries such as stroboscopic measurement, traffic and industrial warning lights, professional photography, aviation, scientific instruments, and more. These flash tubes provide high-intensity light output, fast response, and long lifespan, ensuring consistent performance even in extreme environments.
With over 25 years of manufacturing experience, we offer a reliable and cost-effective lighting solution for professionals worldwide, including lighting manufacturers, research institutes, laboratories, universities, and global wholesalers and retailers.
Core Product Features
Extremely Intense & Stable Light Output
White / Blue-White Light: Provides broad spectrum, ideal for freezing high-speed motion and ensuring accurate measurements.
High Peak Luminous Intensity: Ensures clear motion freezing for precise analysis.
Flash-to-Flash Consistency: Delivers reliable performance across multiple flashes, maintaining accuracy.
Fast Response for High-Speed Measurement
Microsecond to Millisecond Pulse Duration: Perfect for applications requiring rapid flashes, such as RPM measurement and vibration analysis.
Ideal for Motion Detection: Ensures precise measurement and inspection of high-speed motion.
Long Lifetime – Reduced Replacement Costs
≥ 10,000,000 Flashes: Designed for long operational life, significantly reducing maintenance and replacement costs.
Stable Electrode Structure: Optimized design ensures continuous operation for extended periods.
Wide Voltage Compatibility
Trigger Voltage: 2 kV – 10 kV.
Operating Voltage after Ionization: 200V – 600V, ensuring compatibility with most stroboscope power supplies.
Why Choose Xenon Flash Tubes?
Unmatched Peak Intensity
Xenon flash tubes can produce extremely high peak luminous intensity in a fraction of a millisecond, reaching megacandela (Mcd) levels. This intense pulse of light ensures superior visibility in fog, rain, snow, or even bright sunlight, making them ideal for emergency and industrial applications.
Simple Optics
The near-point-source characteristic of xenon flash tubes allows designers to use basic reflectors to achieve uniform 360° light coverage, making the design simpler and more cost-effective compared to LED systems, which require complex arrays and lenses.
Cost-Effective
Xenon flash tubes offer lower total costs than high-power LED arrays because they don’t require expensive heat dissipation systems or complex optical designs to achieve similar peak brightness.
Material Options – Tailored to Different Market Needs
Industrial Quartz / Fused Silica (Germany Origin)
High Thermal Resistance: Suitable for high-temperature environments.
Excellent UV Transmission: Ideal for professional, scientific, and heavy-duty applications.
Borosilicate Glass (Economic Solution)
Cost-Effective: Stable performance for standard industrial applications, making it perfect for budget-conscious projects.
Fully Customizable Designs (OEM Supported)
Shapes Available: Linear, U-shaped, Helical/Spiral, Circular/Ring, Door-shaped, and Special Geometry.
Customizable Dimensions: Diameter, arc length, electrode configuration tailored to your specifications.
Perfect for OEM Needs: Designed for private-label stroboscopes and warning light manufacturers.
How Xenon Flash Tubes Work (Technical Overview)
Trigger Pulse:
A high-voltage pulse ionizes the xenon gas inside the tube, starting the discharge process.
Energy Discharge:
The capacitor releases its stored energy once the gas becomes conductive, producing the flash.
Light Emission:
Excited xenon atoms emit an extremely bright flash, with high peak intensity, ensuring visibility even in difficult conditions.
Applications
Xenon flash tubes are widely used in various industries, including:
Industrial Stroboscopes & RPM Measurement
Traffic & Industrial Warning Beacons
Camera & Photographic Flash Systems
Aviation Obstruction & Aircraft Warning Lights
UV Sterilization & Insect Control Systems
Stage & Entertainment Lighting
Laser Pumping & Scientific Instruments
IPL Hair Removal & Beauty Devices
Laser Marking Machines
Large Industrial Printing Equipment
Technical Specifications (Typical)
Parameter Specification
Power Range 6 W / 15 W / 30 W up to 100 W
Tube Diameter 6 mm – 12 mm
Lifespan ≥ 10,000,000 flashes
Max. Anode Voltage 400 V
Nominal Anode Voltage 350 V
Min. Anode Voltage 220 V
Trigger Voltage 2 kV – 10 kV
Parameters can be customized to meet your circuit design needs.
Manufacturing & Quality Control
Precision Gas Filling Process: Ensures optimal performance and long lifespan.
Strict Electrode Alignment Control: Guarantees stability during high-frequency operations.
Aging Test Before Shipment: Ensures each tube meets high-performance standards.
Stable Batch-to-Batch Consistency: Ensures reliability across production runs, making them ideal for long-term supply projects.
OEM & Custom Support
We offer:
OEM/ODM Orders
Custom Dimensions & Shapes
Voltage & Lifetime Optimization
Bulk Supply for Stroboscope Manufacturers
Contact Us Today for:
Technical Consultation
Drawing Confirmation
Sample Support
Fast QuotationHigh-Performance Xenon Flash Tubes for Stroboscopic, Warning & Industrial Applications
Reliable, High-Intensity Light Source for Precision Measurement, Safety, and Professional Use
Overview
We specialize in producing high-quality xenon flash tubes in various shapes, including linear, U-shaped, spiral, and circular designs, engineered for demanding applications across industries such as stroboscopic measurement, traffic and industrial warning lights, professional photography, aviation, scientific instruments, and more. These flash tubes provide high-intensity light output, fast response, and long lifespan, ensuring consistent performance even in extreme environments.
With over 25 years of manufacturing experience, we offer a reliable and cost-effective lighting solution for professionals worldwide, including lighting manufacturers, research institutes, laboratories, universities, and global wholesalers and retailers.
Core Product Features
Extremely Intense & Stable Light Output
White / Blue-White Light: Provides broad spectrum, ideal for freezing high-speed motion and ensuring accurate measurements.
High Peak Luminous Intensity: Ensures clear motion freezing for precise analysis.
Flash-to-Flash Consistency: Delivers reliable performance across multiple flashes, maintaining accuracy.
Fast Response for High-Speed Measurement
Microsecond to Millisecond Pulse Duration: Perfect for applications requiring rapid flashes, such as RPM measurement and vibration analysis.
Ideal for Motion Detection: Ensures precise measurement and inspection of high-speed motion.
Long Lifetime – Reduced Replacement Costs
≥ 10,000,000 Flashes: Designed for long operational life, significantly reducing maintenance and replacement costs.
Stable Electrode Structure: Optimized design ensures continuous operation for extended periods.
Wide Voltage Compatibility
Trigger Voltage: 2 kV – 10 kV.
Operating Voltage after Ionization: 200V – 600V, ensuring compatibility with most stroboscope power supplies.
Why Choose Xenon Flash Tubes?
Unmatched Peak Intensity
Xenon flash tubes can produce extremely high peak luminous intensity in a fraction of a millisecond, reaching megacandela (Mcd) levels. This intense pulse of light ensures superior visibility in fog, rain, snow, or even bright sunlight, making them ideal for emergency and industrial applications.
Simple Optics
The near-point-source characteristic of xenon flash tubes allows designers to use basic reflectors to achieve uniform 360° light coverage, making the design simpler and more cost-effective compared to LED systems, which require complex arrays and lenses.
Cost-Effective
Xenon flash tubes offer lower total costs than high-power LED arrays because they don’t require expensive heat dissipation systems or complex optical designs to achieve similar peak brightness.
Material Options – Tailored to Different Market Needs
Industrial Quartz / Fused Silica (Germany Origin)
High Thermal Resistance: Suitable for high-temperature environments.
Excellent UV Transmission: Ideal for professional, scientific, and heavy-duty applications.
Borosilicate Glass (Economic Solution)
Cost-Effective: Stable performance for standard industrial applications, making it perfect for budget-conscious projects.
Fully Customizable Designs (OEM Supported)
Shapes Available: Linear, U-shaped, Helical/Spiral, Circular/Ring, Door-shaped, and Special Geometry.
Customizable Dimensions: Diameter, arc length, electrode configuration tailored to your specifications.
Perfect for OEM Needs: Designed for private-label stroboscopes and warning light manufacturers.
How Xenon Flash Tubes Work (Technical Overview)
Trigger Pulse:
A high-voltage pulse ionizes the xenon gas inside the tube, starting the discharge process.
Energy Discharge:
The capacitor releases its stored energy once the gas becomes conductive, producing the flash.
Light Emission:
Excited xenon atoms emit an extremely bright flash, with high peak intensity, ensuring visibility even in difficult conditions.
Applications
Xenon flash tubes are widely used in various industries, including:
Industrial Stroboscopes & RPM Measurement
Traffic & Industrial Warning Beacons
Camera & Photographic Flash Systems
Aviation Obstruction & Aircraft Warning Lights
UV Sterilization & Insect Control Systems
Stage & Entertainment Lighting
Laser Pumping & Scientific Instruments
IPL Hair Removal & Beauty Devices
Laser Marking Machines
Large Industrial Printing Equipment
Technical Specifications (Typical)
Parameter Specification
Power Range 6 W / 15 W / 30 W up to 100 W
Tube Diameter 6 mm – 12 mm
Lifespan ≥ 10,000,000 flashes
Max. Anode Voltage 400 V
Nominal Anode Voltage 350 V
Min. Anode Voltage 220 V
Trigger Voltage 2 kV – 10 kV
Parameters can be customized to meet your circuit design needs.
Manufacturing & Quality Control
Precision Gas Filling Process: Ensures optimal performance and long lifespan.
Strict Electrode Alignment Control: Guarantees stability during high-frequency operations.
Aging Test Before Shipment: Ensures each tube meets high-performance standards.
Stable Batch-to-Batch Consistency: Ensures reliability across production runs, making them ideal for long-term supply projects.
OEM & Custom Support
We offer:
OEM/ODM Orders
Custom Dimensions & Shapes
Voltage & Lifetime Optimization
Bulk Supply for Stroboscope Manufacturers
Contact Us Today for:
Technical Consultation
Drawing Confirmation
Sample Support
Fast Quotation

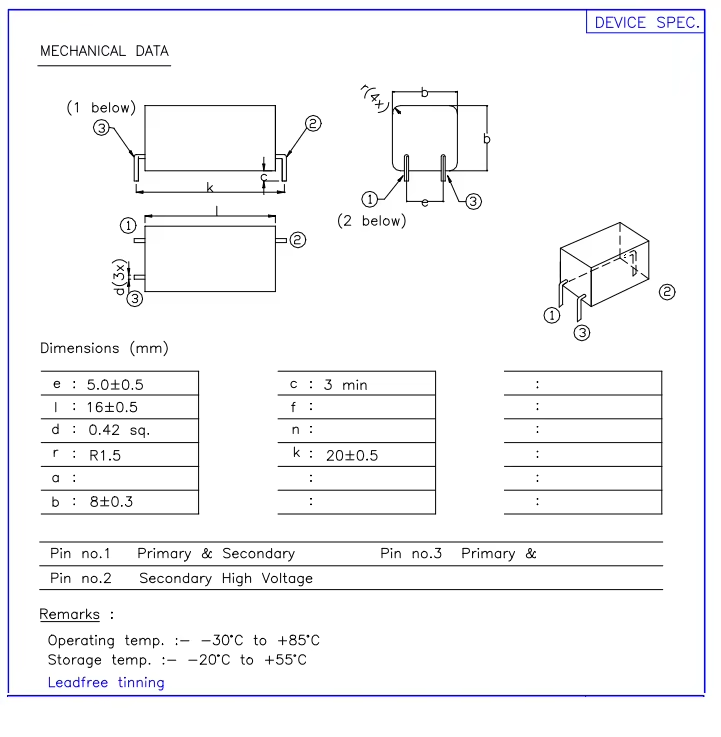

Widely Trigger Coil from eco-system to luxury Square Trigger Coil and PCB for any Budget for widely application
Contact Us Today for Technical Consultation, Drawing Confirmation, and Fast Quotations!
