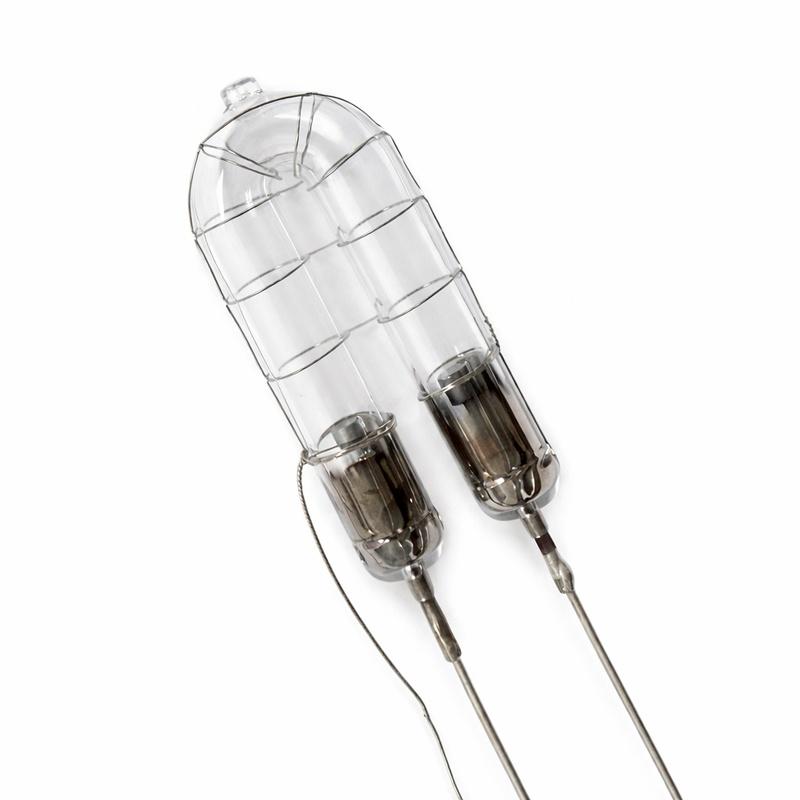

SOWIN GXEC high-speed photography flash tube is built for professional imaging systems where the real requirement is not simply a bright flash, but a controlled pulse that can freeze motion inside a defined exposure window. For motion freeze xenon flash tube applications, timing behavior, peak output, trigger response, and repeatable discharge stability are just as important as brightness. A serious tube must support crisp image capture, reduced blur, stable optical output, and predictable performance across repeated high-speed shooting cycles.
We define a reliable microsecond flash tube by a verified window of arc length, tube geometry, electrode position, trigger coupling, pulse energy, flash duration, repetition rate, and duty-cycle control. When the tube is selected only by appearance or basic dimensions, hidden failures may appear later as delayed ignition, unstable pulse timing, weak motion stop, output drift, heat stress, or early blackening. For optical imaging flash tube projects, SOWIN reviews the tube together with the real trigger route and operating rhythm instead of treating it as a simple lamp replacement.
Multiple geometries, including linear, U-shaped, spiral, and ring designs, can be reviewed for reflector cavity fit, optical path alignment, flash-head structure, and high-speed capture requirements. For procurement and repair approval, SOWIN can provide an engineer-reviewed parameter sheet, sample-matching checklist, Spec PDF support, and RoHS documentation. The goal is to help studios, laboratories, repair benches, OEM service teams, and distributors select a professional camera flash tube or high-speed studio flash tube based on timing control, electrical fit, and real operating duty - not by appearance alone.
SOWIN high-speed photography flash tube is built for motion freeze xenon flash tube applications, microsecond flash tube review, optical imaging flash tube systems, professional camera flash tube workflows, and high-speed studio flash tube projects where timing behavior matters as much as brightness. The real requirement is not a bright pulse. It is a controlled pulse that freezes motion with repeatable peak output, trigger discipline, and optical stability.
| Target | Engineering Meaning |
|---|---|
| Microsecond Flash Control | Supports short, strong discharge behavior for motion-stop and high-speed capture. |
| Peak Output in the Right Window | Delivers usable energy during the exposure event rather than spreading light across the wrong timing window. |
| Trigger Timing Stability | Helps align the flash event with camera exposure, sensor timing, or optical experiment timing. |
| Optical Field Stability | Protects subject illumination and reduces image variation across repeated capture cycles. |
| Duty Stress Control | Connects pulse energy, repetition rate, heat, blackening risk, and expected service life. |
| Review Use | Why It Matters |
|---|---|
| High-Speed Photography / Motion Freeze | Helps buyers compare tube geometry, flash-head route, trigger method, pulse behavior, and timing expectations before sample approval. |
| Timing Review | Supports discussions around pulse duration, trigger delay, capacitor energy, exposure synchronization, and motion-stop requirements. |
| German QUARTZ / SCHOTT Route | Gives procurement and engineering teams a document path for reviewing premium glass, thermal-load tolerance, and long-term optical cleanliness. |
| RFQ and Sample Matching | Works with tube photos, arc length, glass OD, trigger wiring, flash energy, repetition rate, and failure symptoms for faster engineering response. |
| Parameter | Xenon Flash Tube | LED Flash / Continuous LED / Semiconductor Flash |
|---|---|---|
| Peak Intensity | High peak energy at the pulse event | Thermal and driver limited |
| Pulse Duration | Microsecond-class behavior achievable when rated | Rise time and driver behavior may limit motion freeze |
| Spectral Coverage | Broad flash spectrum | Array, phosphor, and bin behavior dependent |
| Replacement Risk | Main risks are trigger coupling + pulse energy + duty-window mismatch | Main risks are driver tuning + thermal margin |
| Validation Path | Engineering Meaning |
|---|---|
| Strict endurance program | Continuous endurance verification of 1100+ hours per cycle, focused on ignition stability, timing repeatability, and controlled aging behavior. |
| Risk-control matching | Verified by geometry + trigger + pulse energy + duty cycle + CORE level to prevent hidden misfire, timing drift, and early failure. |
| Scaling path | Engineering sample, pilot run, trial production, and global field use expose hidden failure modes before regular production. |
|
High-Speed Search Route
Search-intent examples: high-speed photography flash tube, motion freeze xenon flash tube, microsecond discharge flash tube, and optical imaging flash tube.
|
Timing Review Context
Search-intent examples: trigger delay, pulse width, exposure synchronization, capacitor energy, flash duration, high-speed capture, and strobe photography.
|
|
Professional Camera Workflow
Search-intent examples: professional camera flash tube, high-speed studio flash tube, optical imaging module, and camera-based flash system.
|
Cross-Discipline Proof
Search-intent examples: stroboscope timing, industrial imaging, discharge stability, repeat peak output, and motion-freeze flash review.
|
| Item | Buyer Input | Why It Matters |
|---|---|---|
| 1) Tube photos | Front, side, electrode, ruler photo | Confirms geometry and visible risk |
| 2) Trigger / wiring photo | External / internal / wire / unknown | Reduces misfire and delayed ignition |
| 3) Application | High-speed photography / motion freeze | Defines timing and duty risk profile |
| 4) Flash frequency | Hz / flashes per second / workflow | Determines endurance behavior |
| 5) Pulse energy | J rating or capacitor + voltage if known | Prevents overstress and output drift |
| Review Item | Why It Matters |
|---|---|
| Pulse Duration | Supports motion freeze, crisp image capture, and reduced blur. |
| Peak Output | Delivers usable energy in the target time window. |
| Trigger Timing | Aligns discharge behavior with the camera or imaging event. |
| Optical Field Stability | Protects subject illumination and repeatable capture conditions. |
| Duty Stress | Controls heat, blackening, and early aging under repeated operation. |
| Circuit Compatibility | Links tube behavior to capacitor, trigger, and reflector design. |
| Sample Validation | Confirms the real tube behavior inside the actual flash circuit. |
| Document Support | Uses PDF and RoHS files to support procurement and approval review. |
| CORE Level | Recommended Use |
|---|---|
| CORE A | Recommended for high-speed capture, paid experiments, motion-freeze systems, and repeatable timing requirements. |
| CORE B | Recommended for standard high-speed review where duty and pulse targets are known. |
| CORE C | Use only for screening or low-frequency imaging where timing requirements are less severe. |
| Question | Answer |
|---|---|
| Why is xenon useful for high-speed photography? | Xenon can deliver high peak output in a short discharge event, which is valuable for motion freeze and optical imaging. The advantage depends on correct circuit design, energy level, trigger timing, and duty-cycle control. |
| What data is needed for high-speed review? | Send tube photos, flash circuit details if available, trigger method, capacitor energy or voltage, desired repetition rate, motion-freeze target, and any failure symptoms. Timing requirements should be stated clearly. |
| Can a normal studio tube be used for high-speed imaging? | Only if pulse duration, peak output, trigger timing, thermal load, and electrode design fit the system. A normal tube may fire but still produce poor motion-freeze behavior or unstable output under repeated use. |
| What causes unstable high-speed capture? | Trigger delay, mismatched arc position, wrong pulse behavior, insufficient peak output, thermal drift, reflector mismatch, or over-stressed duty operation can reduce capture reliability. |
| Should camera brands be mentioned? | Camera brands may appear as workflow context only, such as professional camera or optical imaging environment. The replacement target remains the flash tube or flash module, not an original camera-body component. |
| How should approval be documented? | Use sample testing, tube geometry data, trigger details, duty-cycle notes, PDF parameters, and application conditions. Do not approve by one successful flash alone. |
| Why is flash energy important? | Flash energy affects pulse stress, brightness, heat, and aging. Without energy or capacitor data, the review must be more cautious and should rely on sample testing. |
| Does high-speed use require a special CORE level? | Often yes. If timing, repetition rate, or peak output is critical, CORE A or a stricter review path should be considered before batch procurement. |
